PowerEdge T310 Technical Guide 21
4.10 Control Panel/LCD
Front control panel features include:
• 2x USB
• Diagnostic indicator (11G LCD module)
• NMI button
• Power button
• HDD activity LED
• System ID button
For information on LCD panel features, see the
Hardware Owner’s Manual.

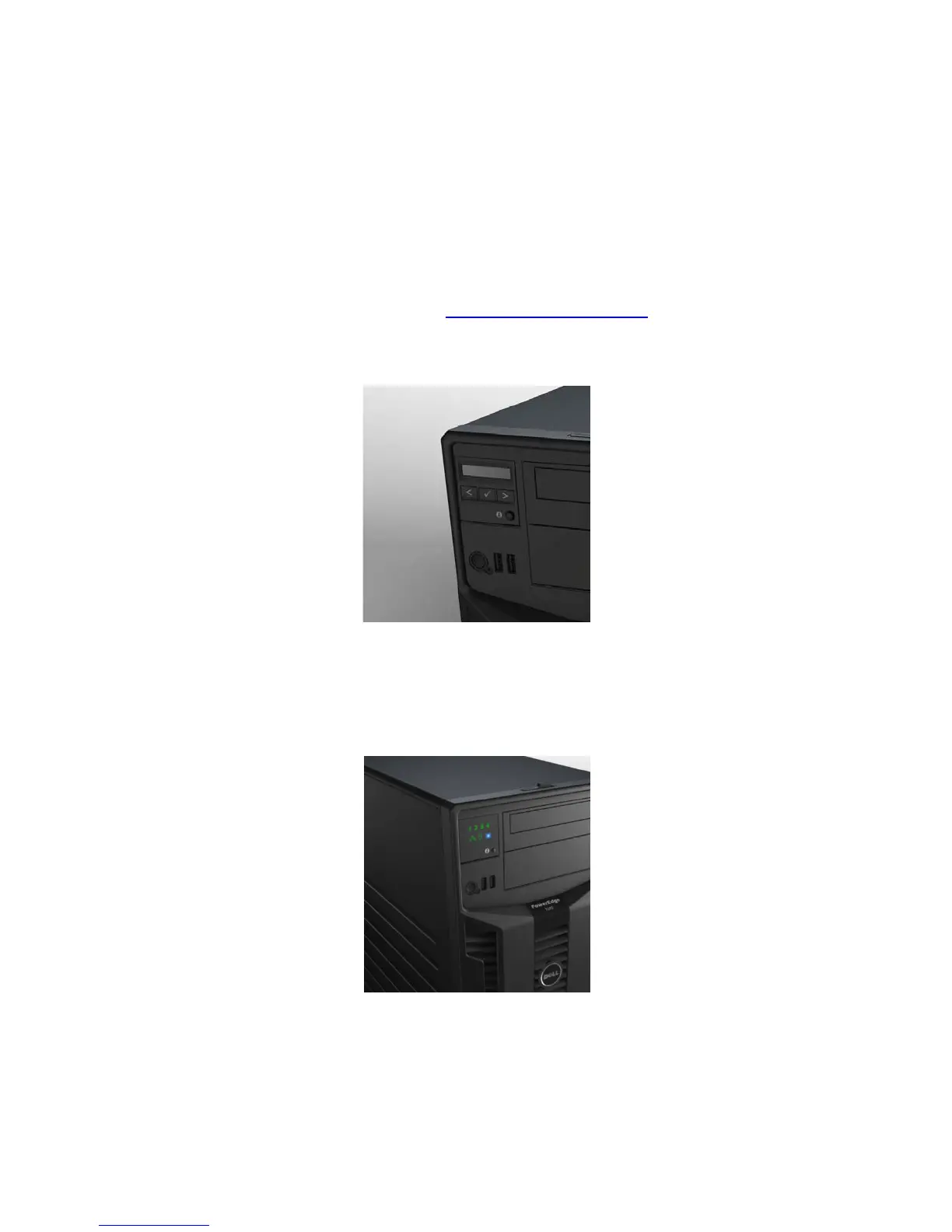

Figure 10. LCD-Front Panel (Hot-Swap HDD Configuration)
Figure 11. LED Front Panel (Cabled HDD Configuration)
