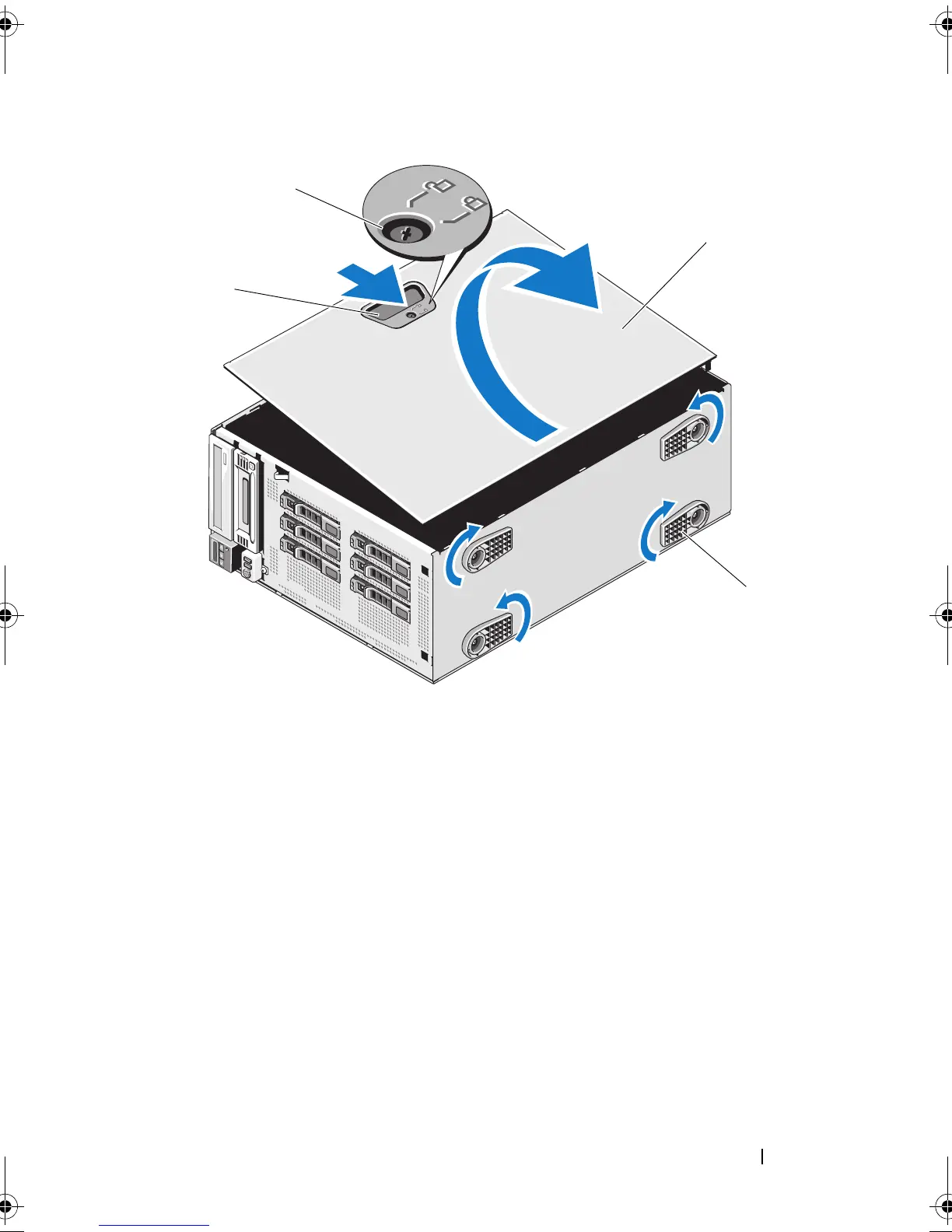

Figure 3-5. Opening and Closing the System
Closing the System
1
Ensure that all internal cables are connected and folded out of the way.
2
Ensure that no tools or extra parts are left inside the system.
3
Align the cover with the slots in chassis and lower the cover into the
chassis. See Figure 3-5.
4
Press the cover into the chassis until the latch locks into place.
5
Turn the lock on the cover release latch clockwise to the locked position.
See Figure 3-5.
6
Place the system upright and on its feet on a flat, stable surface.
7
Rotate the system feet outward.
1 cover release latch 2 cover release latch lock
3 system cover 4 system feet (4)
