11. Remove the double-wide GPGPU card from the expansion-card connector on the riser, and slide it out of the
double-wide PCIe cage.

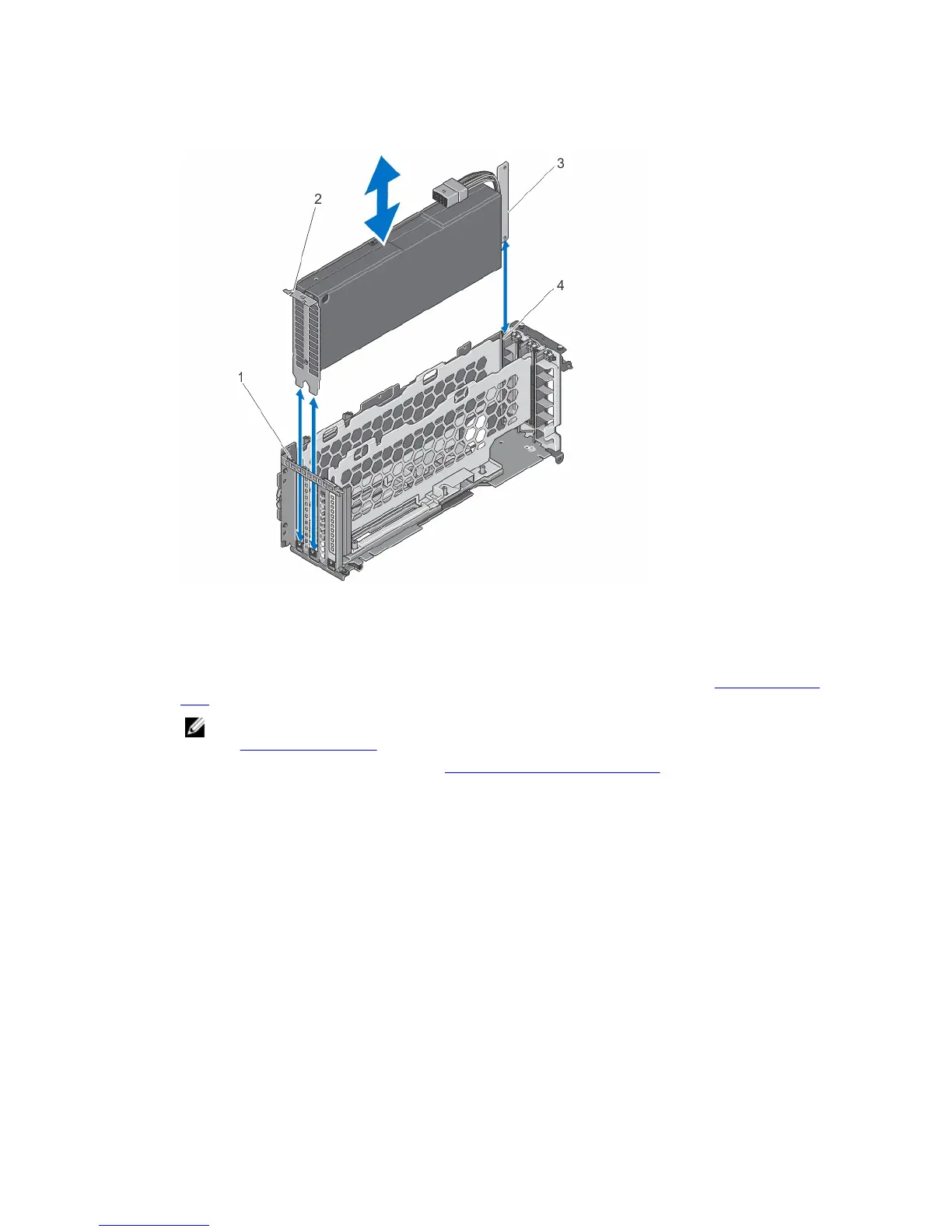

Figure 67. Removing and Installing a Double-Wide GPGPU Card
1. tab on the double-wide PCIe cage 2. double-wide GPGPU card bracket
3. double-wide GPGPU card 4. double-wide PCIe cage
12. Replace the double-wide GPGPU card and install the double-wide PCIe cage, if applicable. See Installing The PCIe
Cage.
NOTE: If you are not installing a double-wide GPGPU card, install the single-wide PCIe cage in the enclosure.
See Installing The PCIe Cage.
13. If applicable, install the expansion card(s). See Installing A Full Height Expansion Card.
14. Close the PCIe cage door.
15. Close the system.
16. If applicable, place the system upright on a flat, stable surface and rotate the system feet outward.
17. If removed, reinstall the hard drives, server modules, and power supplies.
18. Reconnect the enclosure to its electrical outlet and turn the enclosure on, including any attached peripherals.
19. Turn on the server modules using the operating system commands or the CMC.
20. If applicable, install the front bezel.
