7. Open the PCIe cage door.
8. Disconnect the 6-pin connectors of the auxiliary power cable from the power cable connectors on the double-wide
PCIe cage.
9. Disconnect the 8-pin connector of the auxiliary power cable from the power cable of the double-wide GPGPU card.

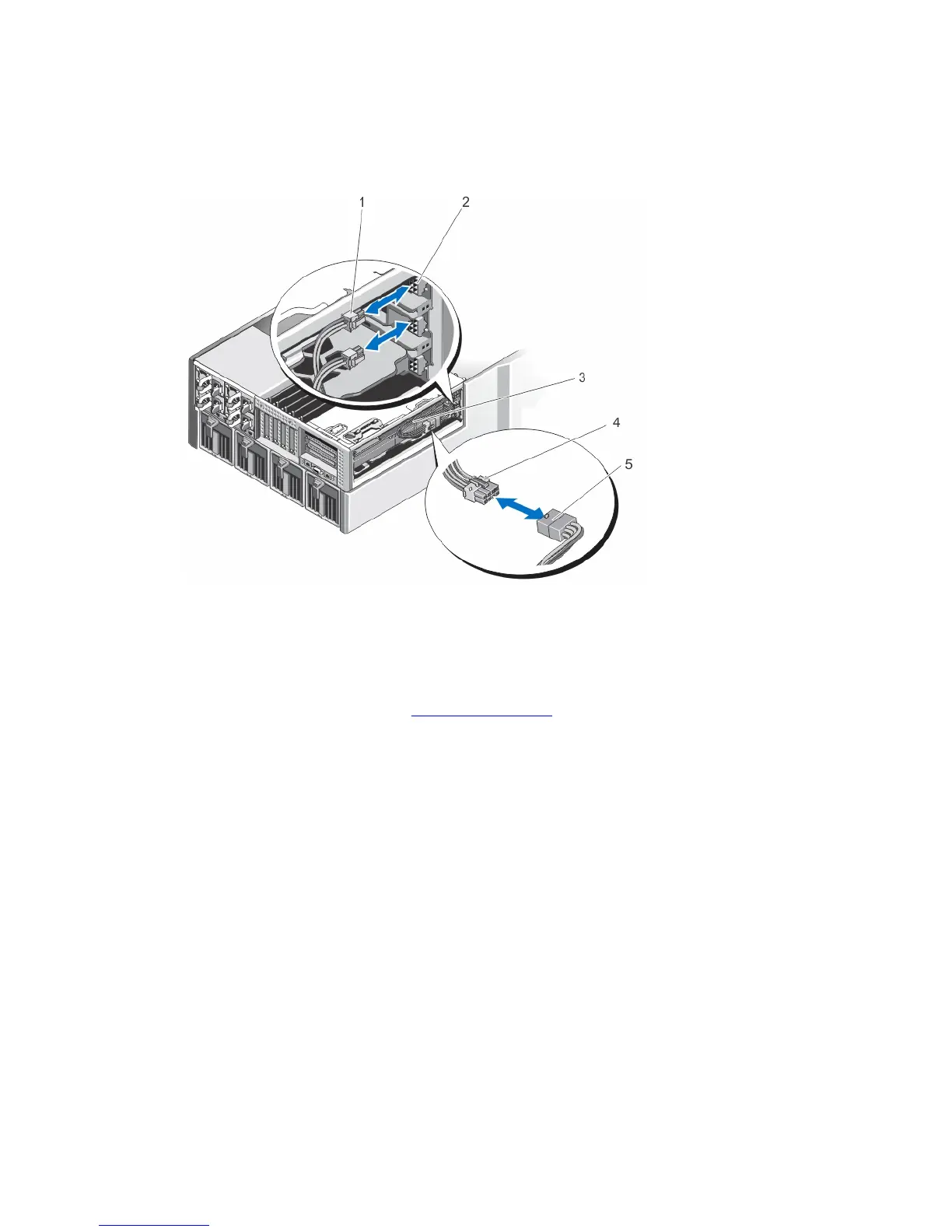

Figure 66. Removing and Installing the Auxiliary Power Cable to the Power Cable Connectors
1. 6-pin connector of the auxiliary power cable (2) 2. power cable connectors on the double-wide
PCIe cage
3. auxiliary power cable 4. 8-pin connector of the auxiliary power cable
5. power cable of the double-wide GPGPU card
10. Remove the double-wide PCIe cage. See Removing The PCIe Cage.
