Planning: About Your Storage Array 25

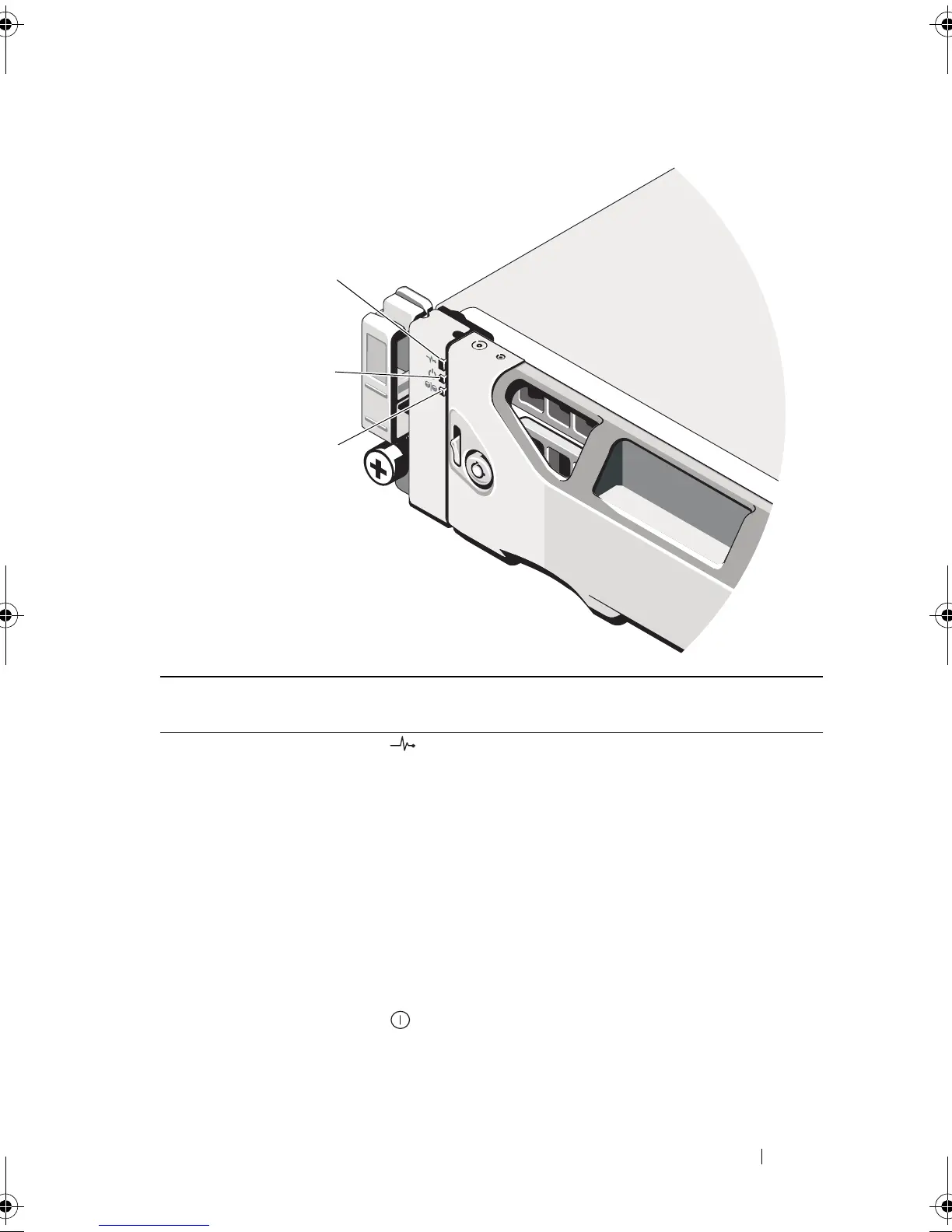

Figure 2-3. Front-Bezel Features and Indicators
Item Indicator, Button, or
Connector
Icon Description
1 Enclosure status LED The enclosure status LED lights when the
enclosure power is on.
Lights blue during normal operation.
Blinks blue when a host server is identifying the
enclosure or when the system identification
button is pressed.
Lights amber as enclosure boots or is reset.
Blinks amber when the enclosure is either in a
fault state or the hosts are not using the preferred
path to a virtual disk.
2 Power LED The power LED lights green when at least one
power supply is supplying power to
the enclosure.
book.book Page 25 Saturday, September 24, 2011 9:06 AM
