Dell Precision 3510 - Power Connector Port Procedures; Installing the Power Connector Port; Removing the Keyboard

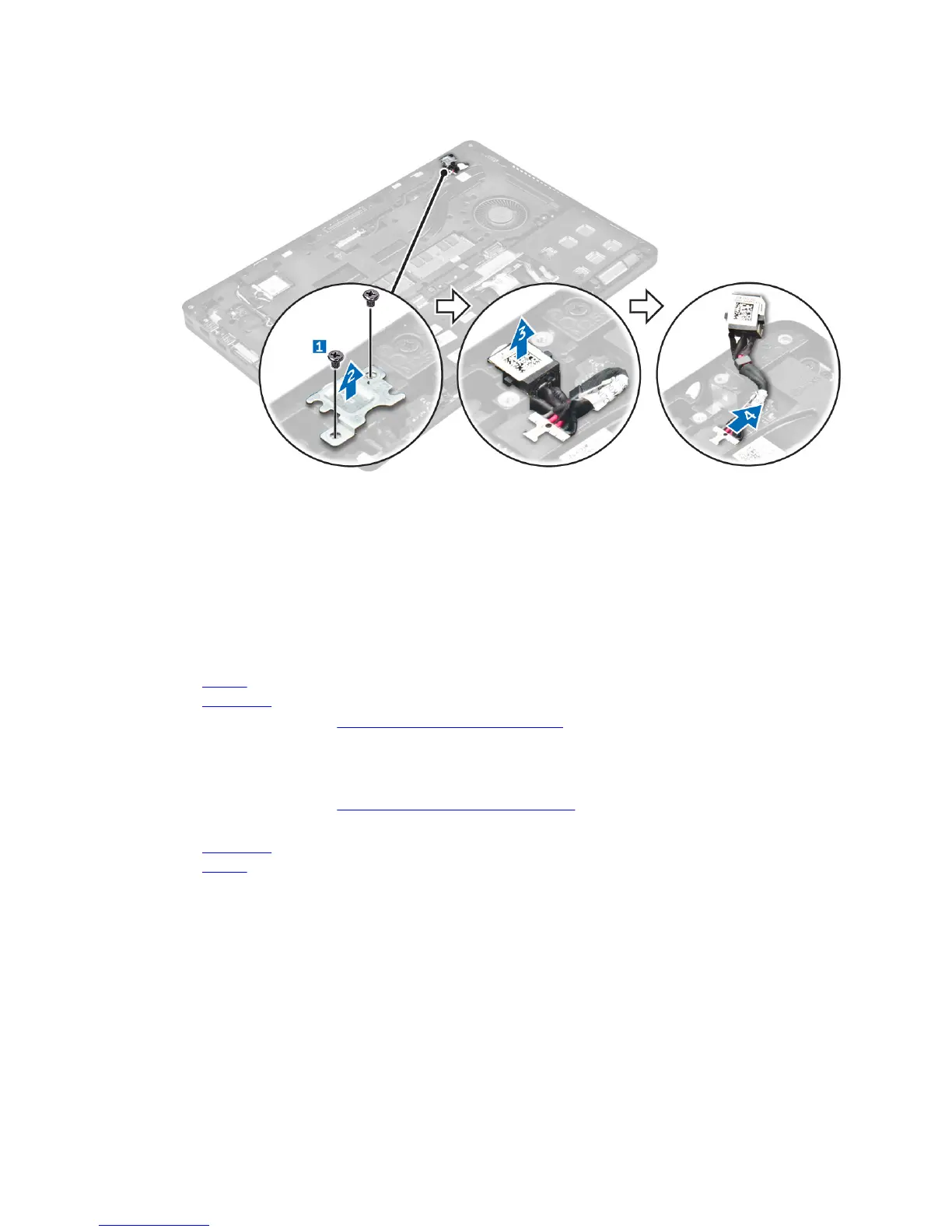

d. Disconnect the power connector port cable from the computer [4].
Installing the power connector port
1. Insert the power connector port into the slot on the computer.
2. Place the metal bracket on the power connector port.
3. Tighten the screw to secure the power connector port to the computer.
4. Route the power connector port cable through the routing channels.
5. Connect the power connector port cable to the connector on the system board.
6. Install the:
a. battery
b. base cover
7. Follow the procedure in After working inside your computer.
Removing the keyboard
1. Follow the procedure in Before working inside your computer.
2. Remove the:
a. base cover
b. battery
3. To remove the keyboard trim:
a. Disconnect the keyboard cables from the connectors on the system board [1, 2].
b. Using a plastic scribe, lift the keyboard trim from the edges to release it from the keyboard [3, 4,
5].
