Dell Precision 3570 Service Manual

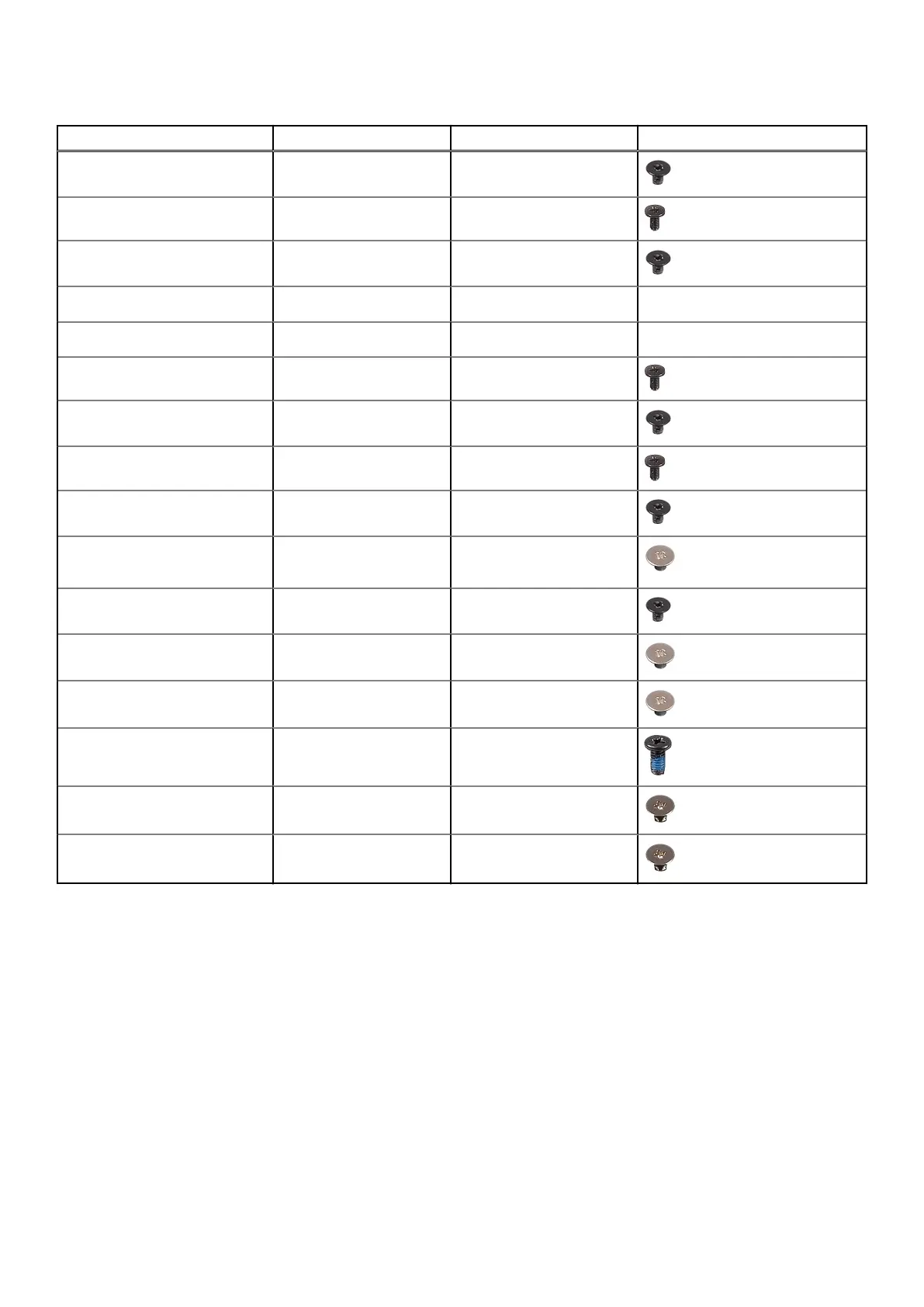

Table 1. Screw list (continued)
Component Screw type Quantity Screw image
Fingerprint bracket M2x3 1
4-Cell support frame M2x4 2
LED board M2x3 1
Discrete heatsink Captive 7
UMA heatsink Captive 6
System fan M2x4 2
System board M2x3 2
USB Type-C bracket M2x4 3
eDP cable bracket M2x3 2
Power button board with
fingerprint reader
M2x2 2
Smart card reader M2x3 2
Keyboard assembly M2x2 27
Keyboard bracket M2x2 14
Display hinge M2.5x5 6
Display back cover M2.5x3.5 4
Display panel bracket M2.5x3.5 2
Major components of Latitude 5531
The following image shows the major components of Latitude 5531.
12
Removing and installing components

Dell Precision 3570 Specifications

General

Storage	Up to 2TB PCIe NVMe SSD
Processor	12th Gen Intel Core i5, i7, or i9
Display	15.6-inch FHD (1920 x 1080)
Graphics	Intel Iris Xe Graphics or NVIDIA T550
Memory	Up to 64GB DDR5
Operating System	Windows 11 Pro
Ports	HDMI 2.0
Wireless	Intel Wi-Fi 6E AX211, Bluetooth 5.2
Dimensions	357.8mm x 233.3mm
