Dell Precision 3570 Service Manual

Installing the wireless card
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task

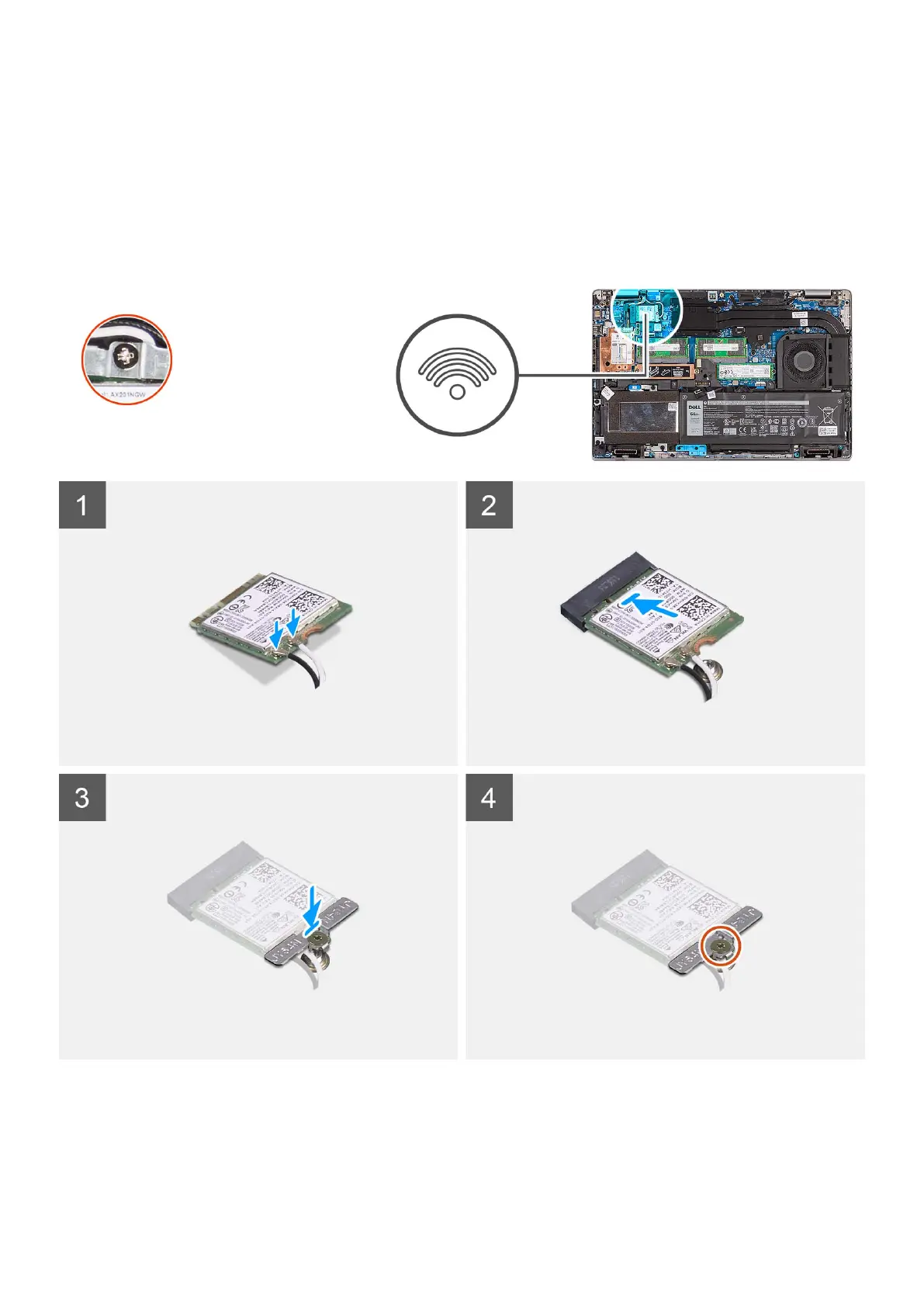

The following image indicate the location of the wireless card and provides a visual representation of the installation procedure.
Steps
1. Connect the antenna cables to the wireless card.
The following table provides the antenna-cable color scheme:
Removing and installing components
25

Dell Precision 3570 Specifications

General

Storage	Up to 2TB PCIe NVMe SSD
Processor	12th Gen Intel Core i5, i7, or i9
Display	15.6-inch FHD (1920 x 1080)
Graphics	Intel Iris Xe Graphics or NVIDIA T550
Memory	Up to 64GB DDR5
Operating System	Windows 11 Pro
Ports	HDMI 2.0
Wireless	Intel Wi-Fi 6E AX211, Bluetooth 5.2
Dimensions	357.8mm x 233.3mm
