Dell Precision 3570 Service Manual

Display assembly
Removing the display assembly
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the SIM card.
3. Remove the microSD card.
4. Remove the base cover.
5. Remove the Wireless card.
6. Remove the WWAN card.
About this task

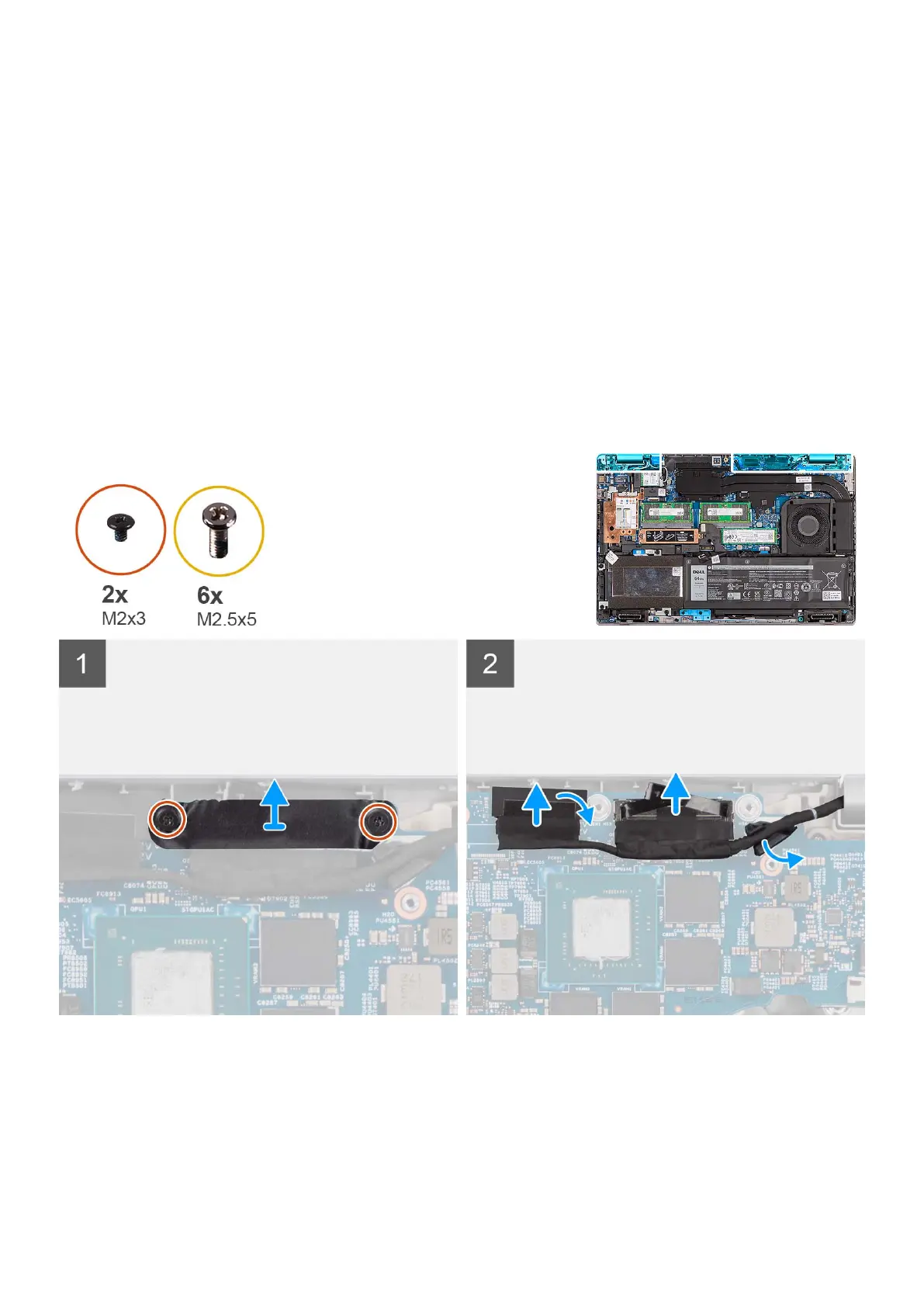

The following images indicate the location of the display assembly and provide a visual representation of the removal procedure.
90 Removing and installing components

Dell Precision 3570 Specifications

General

Storage	Up to 2TB PCIe NVMe SSD
Processor	12th Gen Intel Core i5, i7, or i9
Display	15.6-inch FHD (1920 x 1080)
Graphics	Intel Iris Xe Graphics or NVIDIA T550
Memory	Up to 64GB DDR5
Operating System	Windows 11 Pro
Ports	HDMI 2.0
Wireless	Intel Wi-Fi 6E AX211, Bluetooth 5.2
Dimensions	357.8mm x 233.3mm
