Dell Precision 3570 Service Manual

Steps

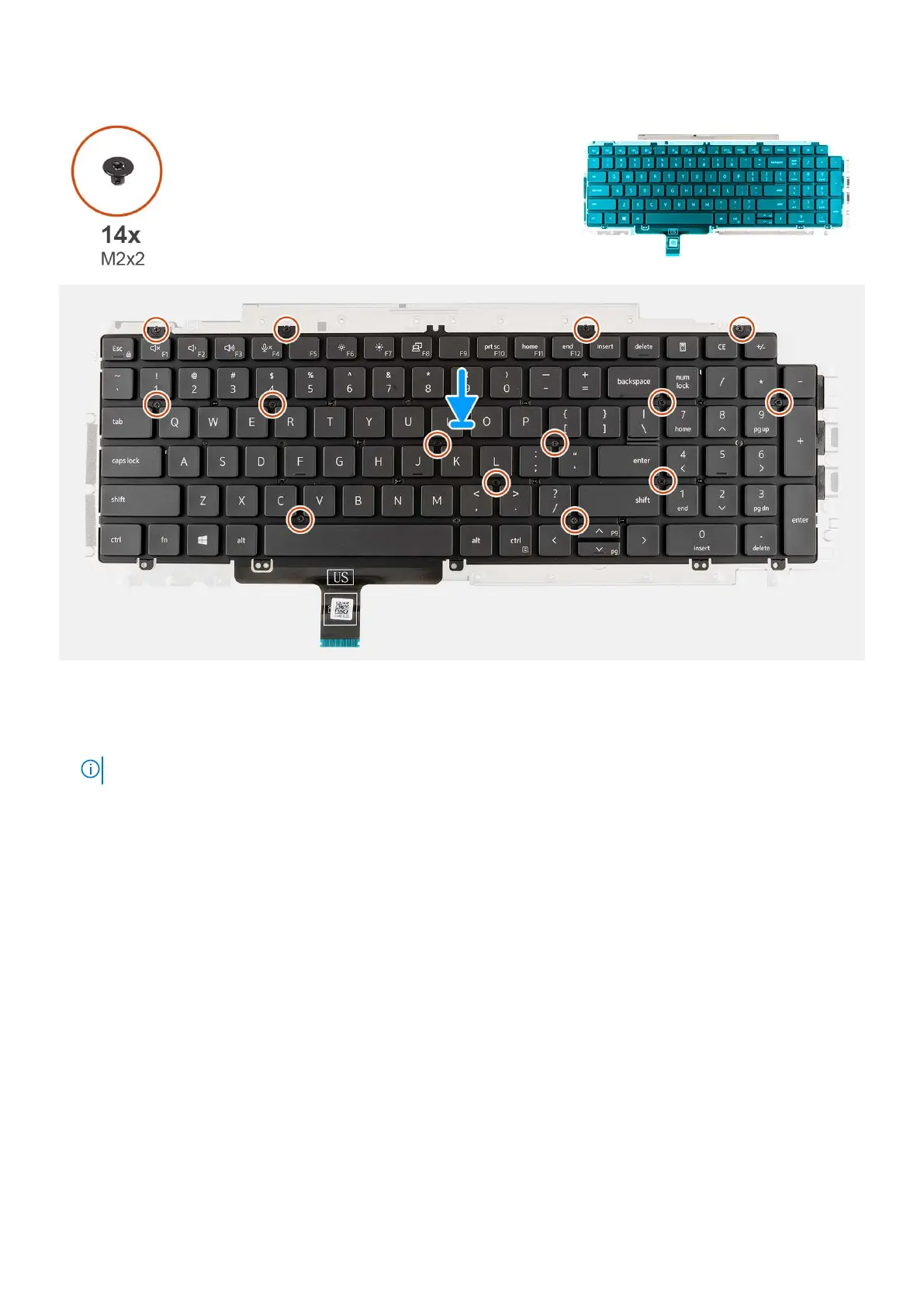

1. Align and place the keyboard on the keyboard bracket.
2. Replace the 14 screws (M2x2) to secure the keyboard to the keyboard bracket.
NOTE: For 5G WWAN configuration, ensure that you transfer the absorber to new keyboard bracket.
Next steps
1. Install the keyboard assembly.
2. Install the system board.
3. Install the assembly inner frame.
4. Install the battery.
5. Install the hard drive.
6. Install the WWAN card.
7. Install the wireless card.
8. Install the 2280 solid-state drive or 2230 solid-state drive.
9. Install the base cover.
10. Install the microSD card.
11. Install the SIM card.
12. Follow the procedure in After working inside your computer.
Removing and installing components
89

Dell Precision 3570 Specifications

General

Storage	Up to 2TB PCIe NVMe SSD
Processor	12th Gen Intel Core i5, i7, or i9
Display	15.6-inch FHD (1920 x 1080)
Graphics	Intel Iris Xe Graphics or NVIDIA T550
Memory	Up to 64GB DDR5
Operating System	Windows 11 Pro
Ports	HDMI 2.0
Wireless	Intel Wi-Fi 6E AX211, Bluetooth 5.2
Dimensions	357.8mm x 233.3mm
