Dell Precision 3570 Service Manual

Steps

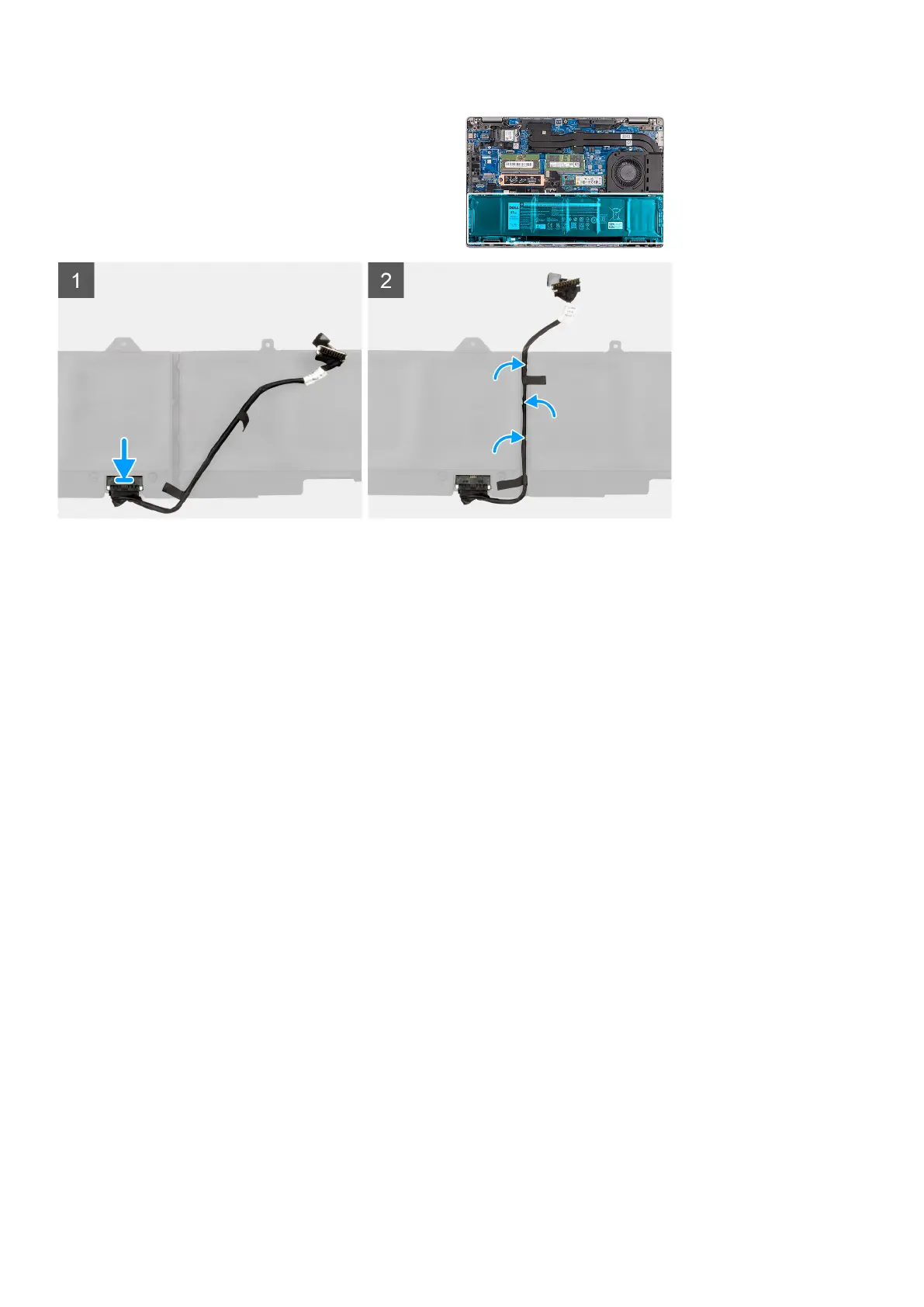

1. Connect the battery cable to the connector on the battery.
2. Route the battery cable through the routing guides on the battery.
Next steps
1. Install the battery.
2. Install the base cover.
3. Install the microSD card.
4. Install the SIM tray.
5. Follow the procedure in After working inside your computer.
Assembly inner frame
Removing the assembly inner frame
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the SIM card.
3. Remove the microSD card.
4. Remove the base cover.
5. Remove the battery.
6. Remove the hard drive.
7. Remove the wireless card.
8. Remove the WWAN card.
About this task
The following images indicate the location of the assembly inner frame and provide a visual representation of the removal
procedure.
54
Removing and installing components

Dell Precision 3570 Specifications

General

Storage	Up to 2TB PCIe NVMe SSD
Processor	12th Gen Intel Core i5, i7, or i9
Display	15.6-inch FHD (1920 x 1080)
Graphics	Intel Iris Xe Graphics or NVIDIA T550
Memory	Up to 64GB DDR5
Operating System	Windows 11 Pro
Ports	HDMI 2.0
Wireless	Intel Wi-Fi 6E AX211, Bluetooth 5.2
Dimensions	357.8mm x 233.3mm
