Intrusion switch
Removing intrusion switch
1 Follow the procedure in Before working inside your computer.
2 Remove the:
a Top cover

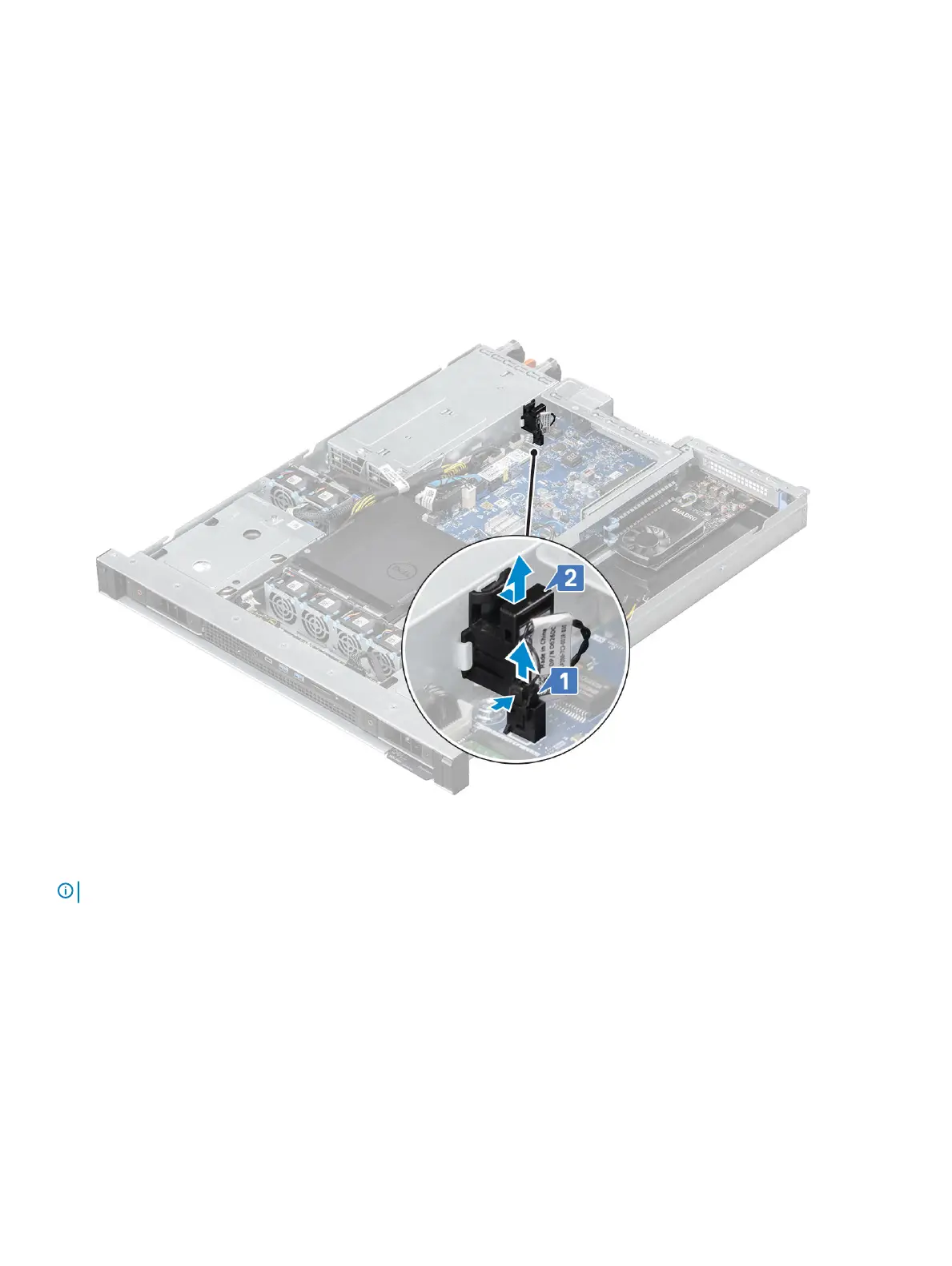

3 To remove the intrusion switch:
a Disconnect the intrusion switch cable from the connector on the system board [1].
b Pull the intrusion switch release tab and lift it away from the system [2].
Installing the intrusion switch
NOTE
: Insure the intrusion switch is completely seated and latched in place.
1 Insert the intrusion switch into the slot on the chassis [1].
2 Connect the intrusion switch cable to the system board [2].
42
Removing and installing components
