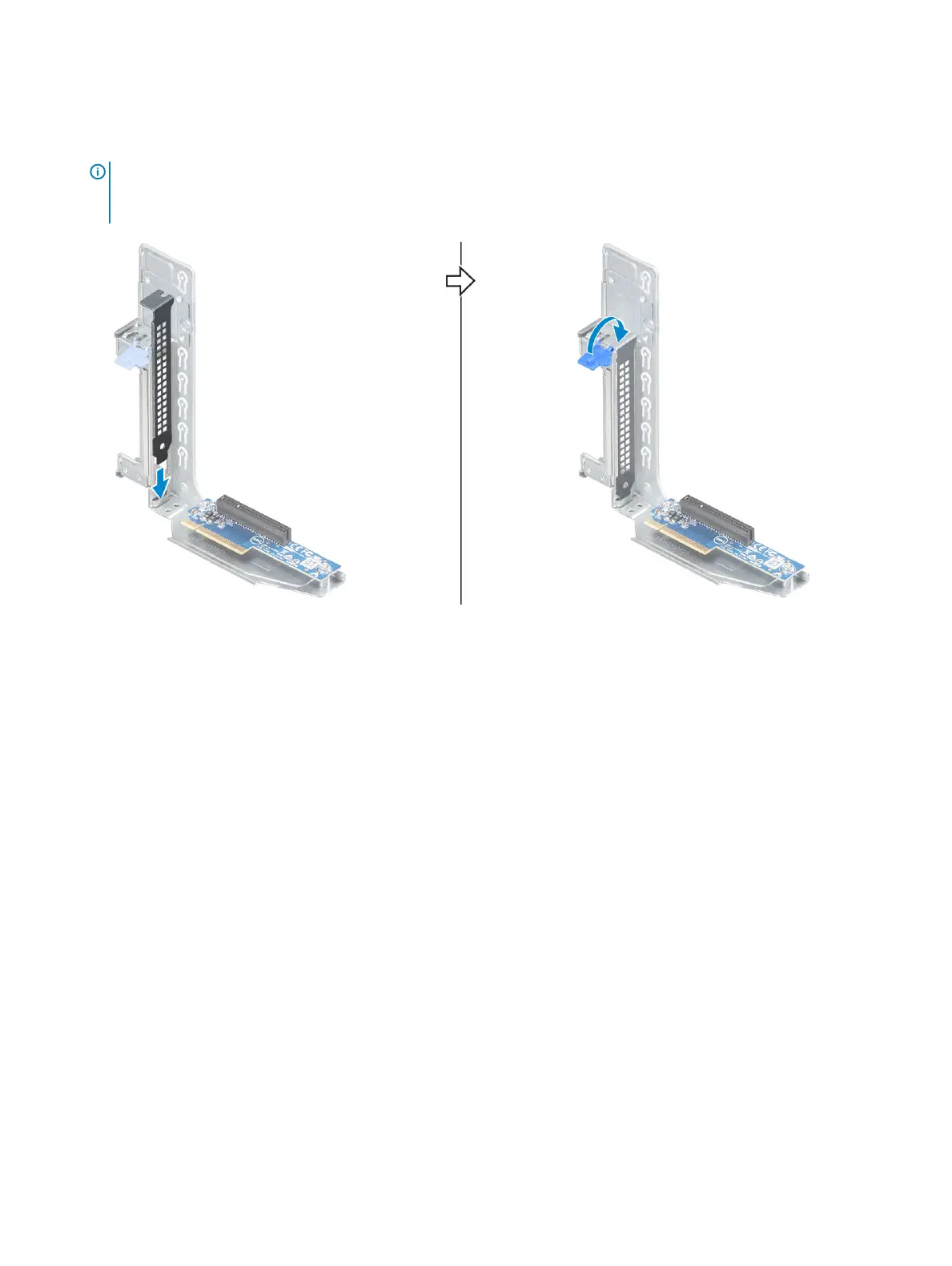

Installing the riser2 blank
1 Insert the riser2 blank into the slot and close the release tab to secure the riser2 blank in place.
NOTE: A riser2 blank must be installed over an empty expansion card slot to maintain Federal Communications Commission
(FCC) certication of the system. The blank also keep dust and dirt out of the system and aid in proper cooling and airow
inside the system.
2 Install the:
a Riser 2 module
b Top cover
3 Follow the procedure in After working inside your computer.
System board
Removing system board
1 Follow the procedure in Before working inside your computer.
2 Remove the:
a Top cover
b Air duct
c System Fan
d System fan cage
e Memory module
f Heat sink
g Processor
h M.2 PCIe Solid State Drive(if installed)
i Intrusion switch
j Riser 2 Module
k Riser 1 Module
3 To remove the system board connections:
70
Removing and installing components
