Dell Precision 7730 - Page 54

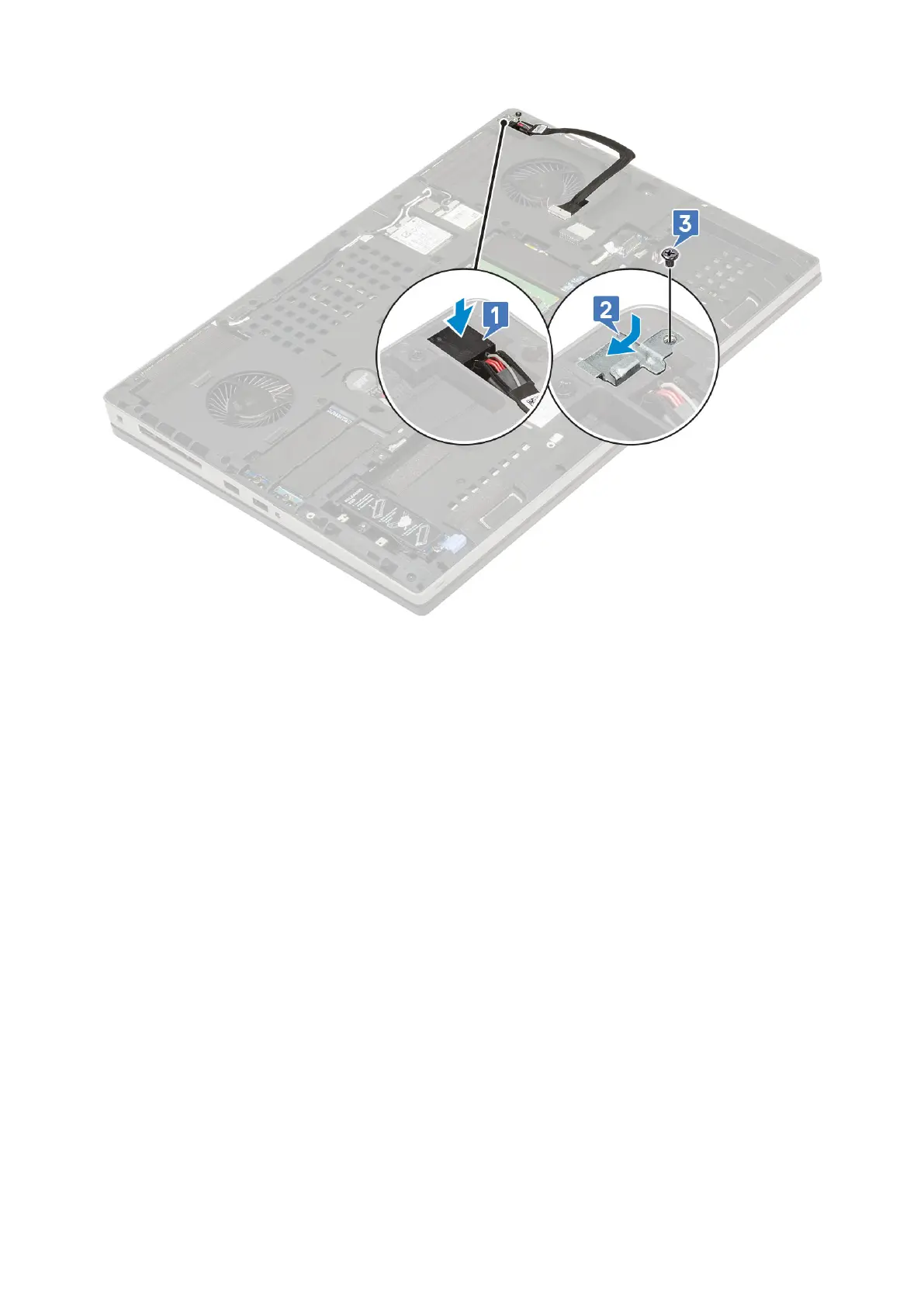

d. Affix the adhesive tape to secure the power connector cable in place [1].
e. Route the cable through the routing channel and affix the adhesive tape [2].
f. Connect the power connector cable to the connector on the system board [3].
54
Removing and installing components
