Dell Precision 7730 - Page 56

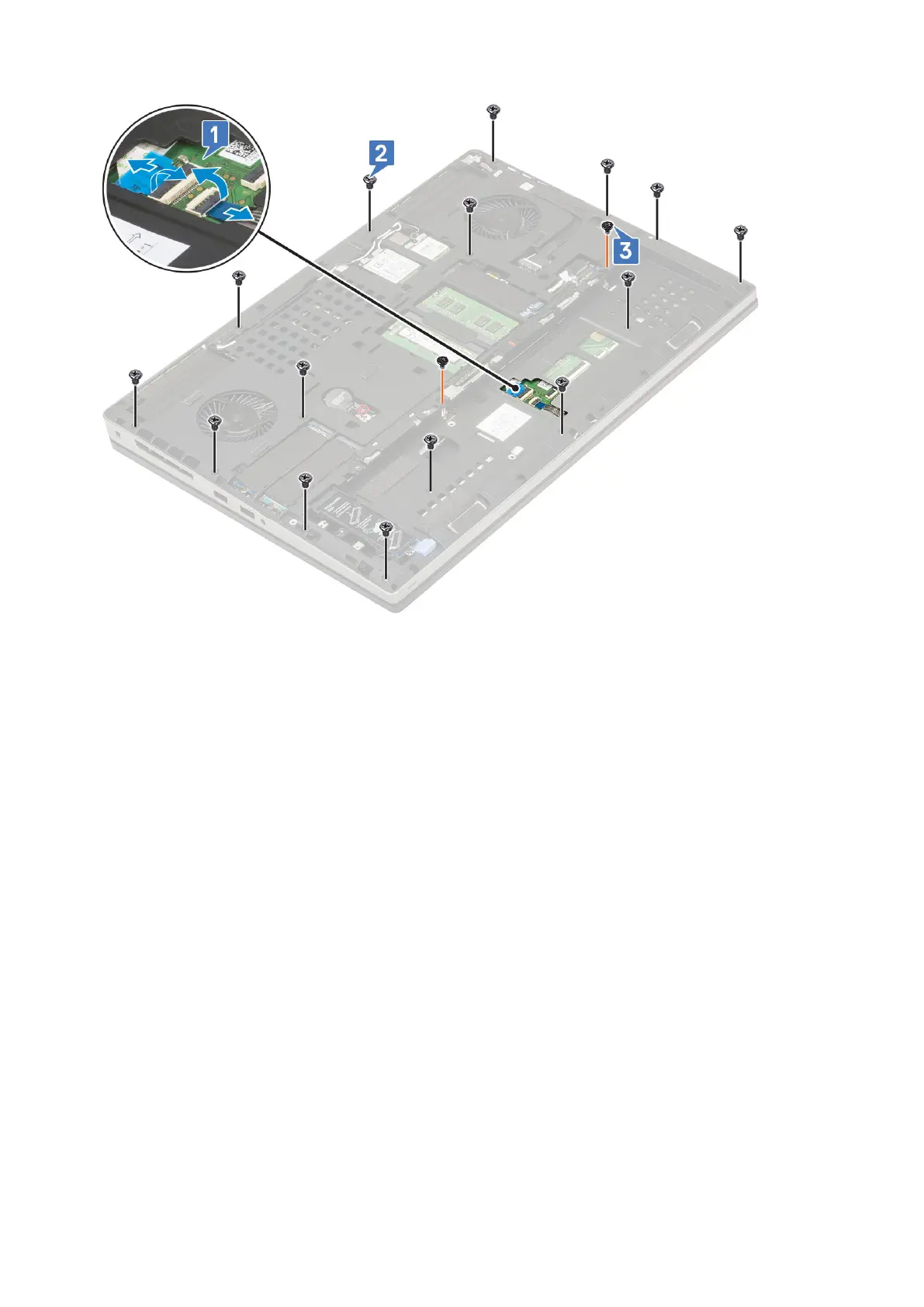

c. Turn the system around and disconnect the system board cable and power button cable from the connectors on the
system board [1, 2].
d. Remove the 4 (M2.0x3.0) screws that secure the palmrest to the system [3].
56
Removing and installing components
