Dell PRECISION T1650 - Motherboard Layout

DELL™ PRECISION™ T1650 TECHNICAL GUIDEBOOK
4
Number Name Number Name
1 Internal Speaker Connector (INT_SPKR) 13 PCI-e 4x Connector(SLOT4)
2 Front IO Connector (FRONTPANEL) 14 Buzzer (BEEP)
3 Thermal Sensor Connector(THRM_2) 15 LPC Debug Connector (LPC_DEBUG)
4 SATA 0 Connector(SATA0)- SATA III 16 Intrusion Switch Connector (INTRUDER)
5 SATA 1 Connector(SATA1)- SATA III 17 System Fan Connector (FAN_HDD)
6 SATA 2 Connector(SATA2)- SATA II 18 P2 Power Connector(12V_PWRCONN)
7 SATA 3 Connector(SATA3)- SATA II 19 Processor Socket (N/A)
8 Internal USB Connector (INT_USB) 20 CPU fan Connector (FAN_CPU)
9 Battery Connector (BATTERY) 21 Memory Connectors(DIMM1, DIMM2, DIMM3, DIMM4)
10 PCI-e 16x Connector(SLOT1) 22 Power Switch Connector (PWR_SW)
11 PCI-e 1x Connector(SLOT2) 23 P1 Power Connector (POWER)
12 PCI Connector(SLOT3) 24 Front USB3.0 Connector (Front _USB )

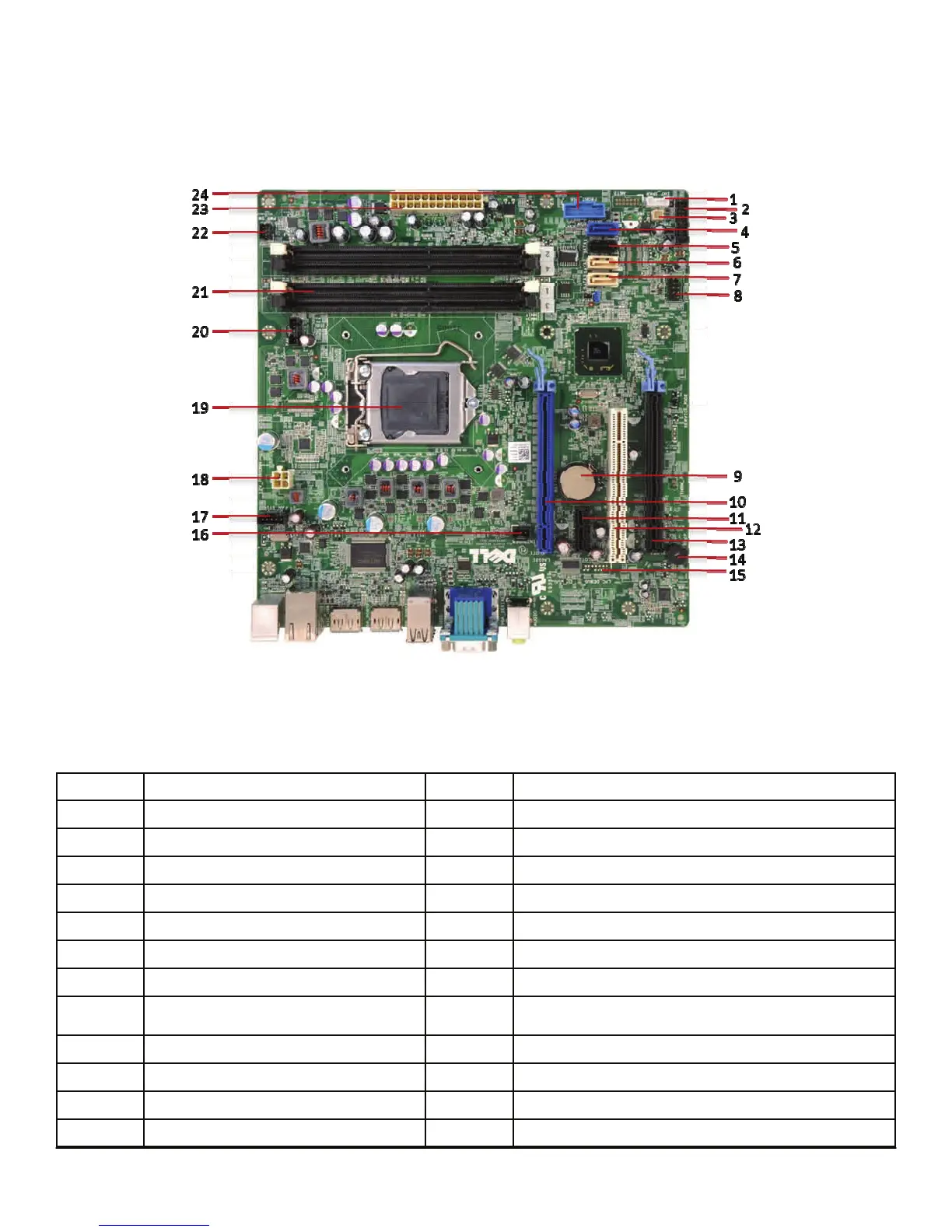

MT System Board Components
MOTHERBOARD LAYOUT
