Dell Precision Tower 7910 User Manual

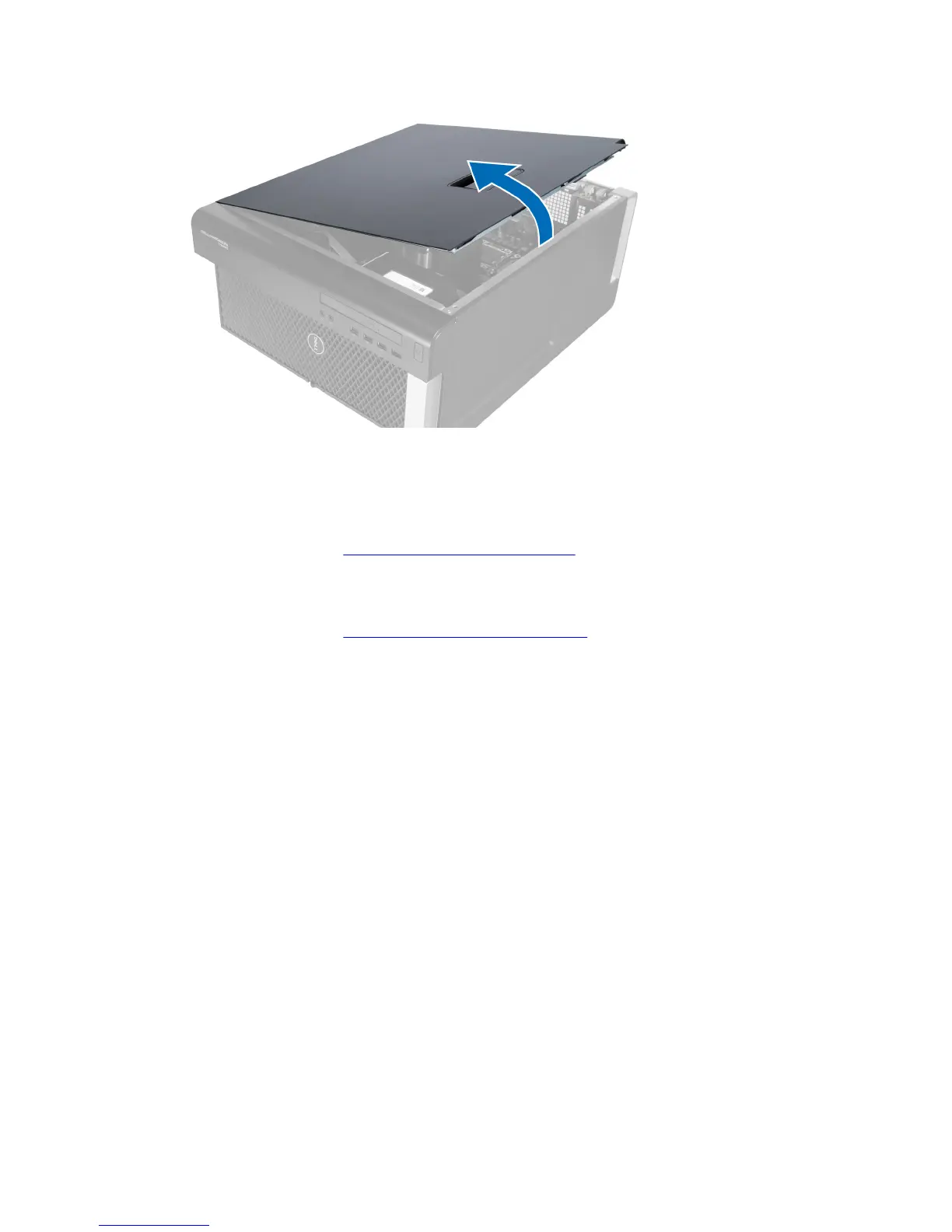

Installing the Left Cover
1. Place the computer cover on the chassis.
2. Press down on the cover till it clicks into place.
3. Follow the procedures in After Working Inside Your Computer.
Removing the Intrusion Switch
1. Follow the procedures in Before Working Inside Your Computer.
2. Remove:
a. left cover
b. memory shroud
3. Perform the following steps as shown in the illustration:
a. Press the intrusion switch release latch and disconnect the connector from the system board
[1,2].
b. Unroute the intrusion switch cable from the chassis [3].
c. Push the intrusion switch downwards and remove it from the computer [4].
18

Dell Precision Tower 7910 Specifications

General

Chipset	Intel C612
Processor Options	Intel Xeon processor E5-2600 v4 product family with up to 22 cores per processor
Memory	Up to 1TB DDR4 ECC/non-ECC (16 DIMM slots)
Storage Options	SATA, SAS, SSD
Graphics Options	NVIDIA Quadro, AMD FirePro
Power Supply	685W, 1300W
Operating System	Microsoft Windows 7 Professional, Red Hat Enterprise Linux, Ubuntu
Expansion Slots	7 PCIe slots (x16, x8, x4)
Ports	USB 3.0, USB 2.0
Networking	Integrated Intel I217 Gigabit Ethernet controller
