Dell S2409WFP - Flat Panel Specifications

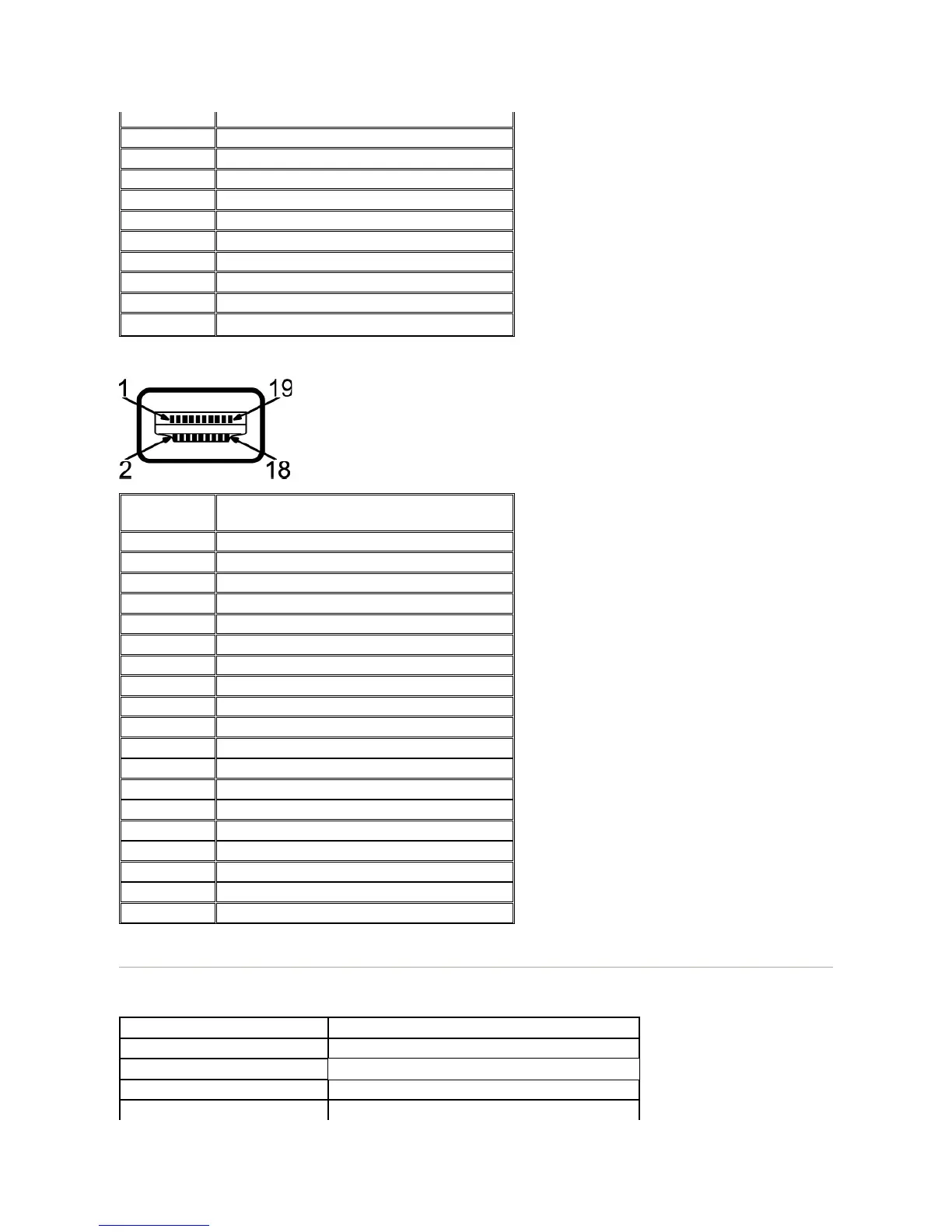

HDMI Connector

Flat Panel Specifications
14
+5V/+3.3V power
15
Selftest
16
Hot Plug Detect
17
TMDS RX0-
18
TMDS RX0+
19
TMDS Ground
20
Floating
21
Floating
22
TMDS Ground
23
TMDS Clock+
24
TMDS Clock-
Pin
Number
19-pin Side of the Connected Signal
Cable
1
TMDS DATA 2+
2
TMDS DATA 2 SHIELD
3
TMDS DATA 2-
4
TMDS DATA 1+
5
TMDS DATA 1 SHIELD
6
TMDS DATA 1-
7
TMDS DATA 0+
8
TMDS DATA 0 SHIELD
9
TMDS DATA 0-
10
TMDS CLOCK
11
TMDS CLOCK SHIELD
12
TMDS CLOCK-
13
CEC
14
Reserved (N.C. on device)
15
DDC CLOCK (SCL)
16
DDC DATA (SDA)
17
DDC/CEC Ground
18
+5V POWER
19
HOT PLUG DETECT
Screen type
Active matrix - TFT LCD
Screen dimensions
24 inches (24-inch viewable image size)
Preset display area:
Horizontal
531.36 mm (20.94 inches)
Vertical
298.89 mm (11.76 inches)
