Related concepts
Single port configuration on page 7
Redundant configuration on page 8
Multi-chain configuration on page 8
Single port configuration
Single port configuration supports up to four enclosures.
The enclosures are daisy-chained with one of the enclosures connected to a single port on the controller card.

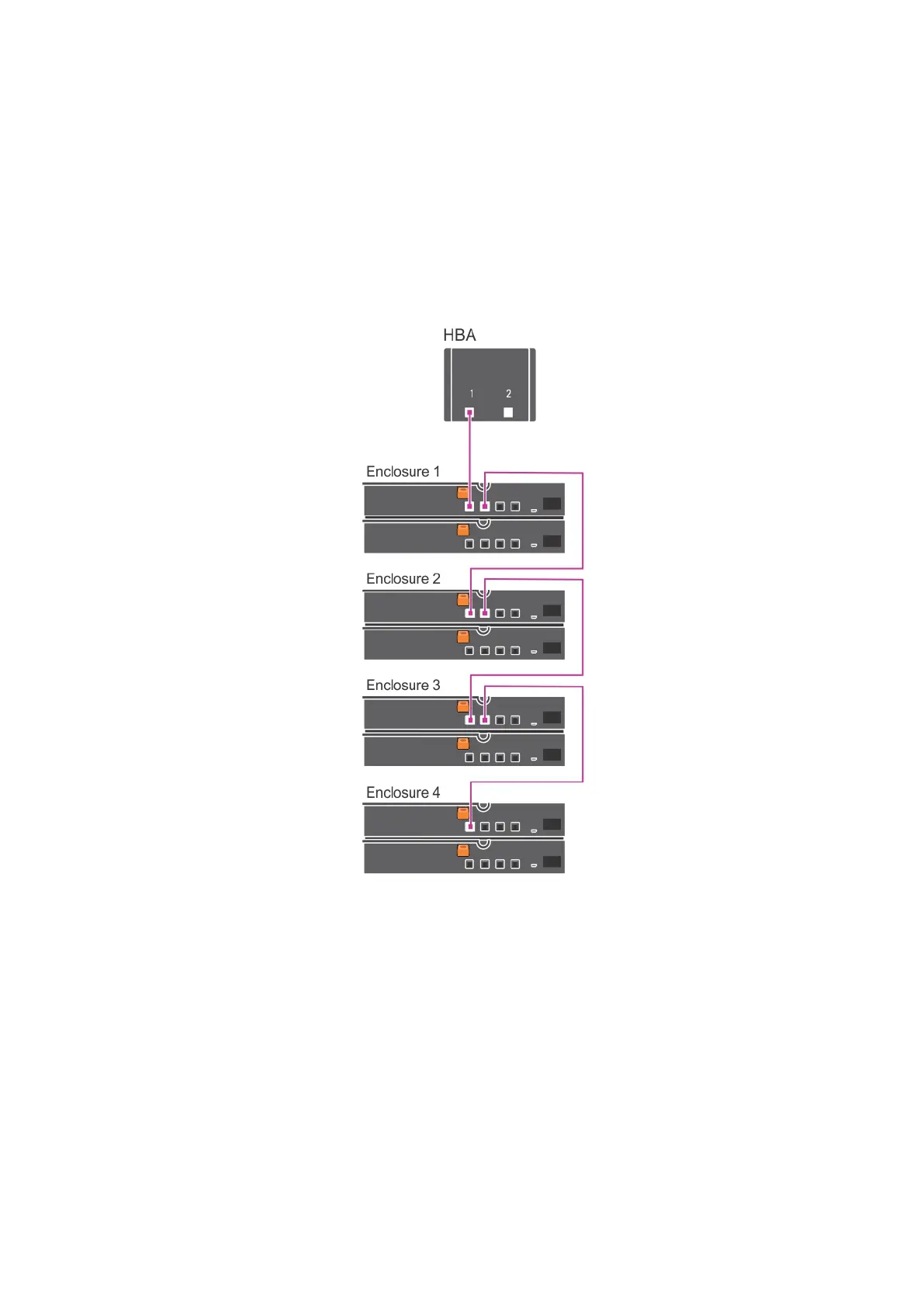

Figure 2. Single port configuration
Connecting the enclosure
7
