Redundant configuration
In Redundant configuration, the enclosures are daisy-chained with one of the enclosures connected to both the ports on the
controller card.

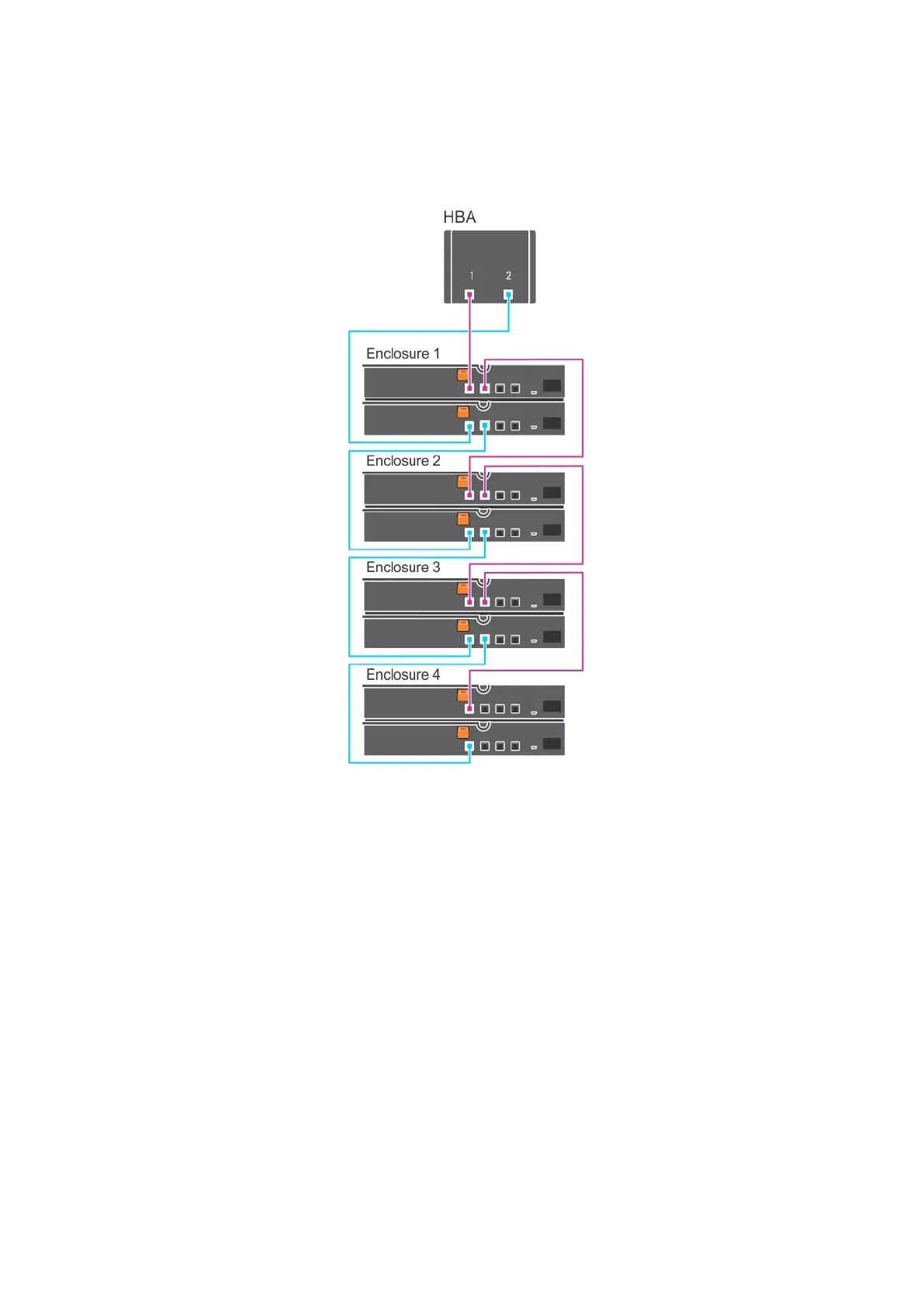

Figure 3. Redundant configuration
Multi-chain configuration
Multi-chain configuration supports up to eight enclosures.
The first four enclosures are daisy-chained with one of the enclosures connected to a single port on the controller card. The
second four enclosures are daisy-chained with one of the enclosures connected to the second port on the controller card..
8
Connecting the enclosure
