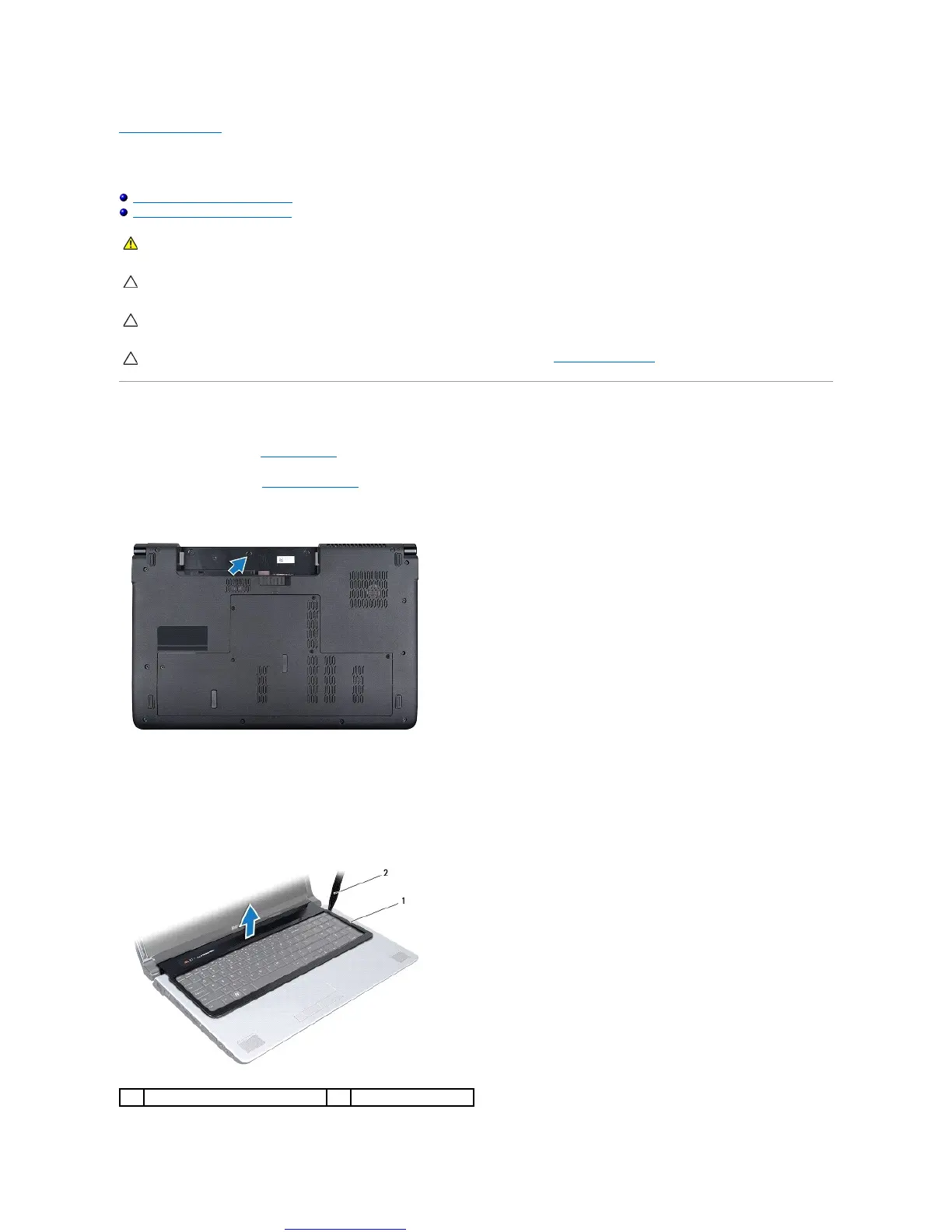

 Center Control Cover
DellStudio™1745/1747ServiceManual
Removing the Center Control Cover
Replacing the Center Control Cover



Removing the Center Control Cover

1. Follow the procedures in Before You Begin.

2. Remove the battery (see Removing the Battery).

3. Remove the screw that secures the center control cover to the computer base.

4. Turn the computer over and open the display as far as it will open.

5. Pry out the center control cover with a plastic scribe starting from the back of the computer.

6. Ease the center control cover up.
WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best
practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.
CAUTION: Onlyacertifiedservicetechnicianshouldperformrepairsonyourcomputer.DamageduetoservicingthatisnotauthorizedbyDell™
is not covered by your warranty.
CAUTION: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal
surface (such as a connector on your computer).
CAUTION: To help prevent damage to the system board, remove the main battery (see Removing the Battery) before working inside the
computer.
1
center control cover
2
plastic scribe
