 AC Adapter Connector
DellStudio™1745/1747ServiceManual
Removing the AC Adapter Connector
Replacing the AC Adapter Connector



Removing the AC Adapter Connector

1. Follow the procedures in Before You Begin.

2. Remove the subwoofer assembly (see Removing the Subwoofer Assembly).

3. Make a note of the AC adapter connector cable routing and lift the AC adapter connector out of the computer base.
Replacing the AC Adapter Connector

1. Follow the procedures in Before You Begin.

2. Route the AC adapter connector cable and place the AC adapter connector on the computer base.

3. Replace the subwoofer assembly (see Replacing the Subwoofer Assembly).
Back to Contents Page

WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best
practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.
CAUTION: Onlyacertifiedservicetechnicianshouldperformrepairsonyourcomputer.DamageduetoservicingthatisnotauthorizedbyDell™
is not covered by your warranty.
CAUTION: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal
surface (such as a connector on your computer).
CAUTION: To help prevent damage to the system board, remove the main battery (see Removing the Battery) before working inside the
computer.

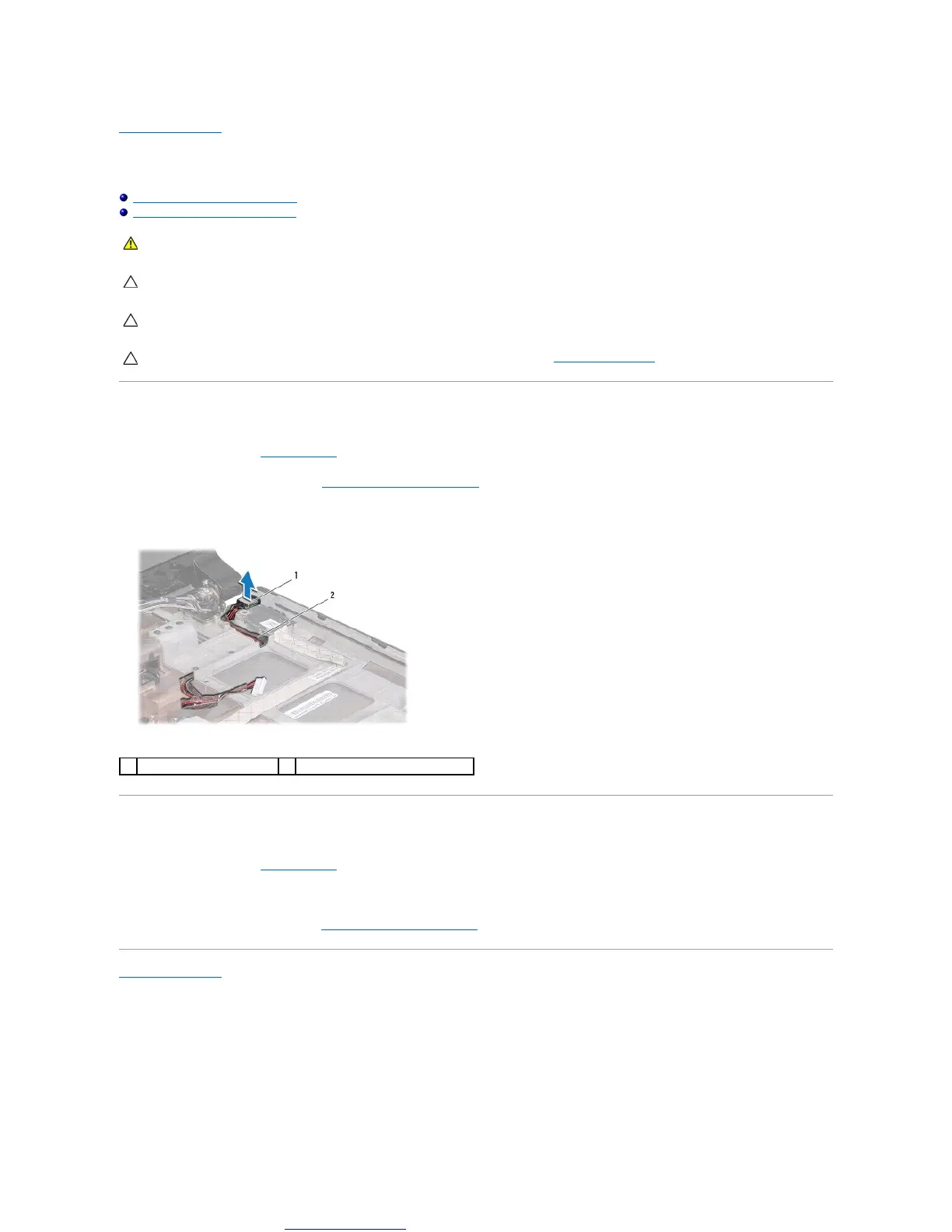

1
AC adapter connector
2
AC adapter connector cable
