 Palm Rest
DellStudio™1745/1747ServiceManual
Removing the Palm Rest
Replacing the Palm Rest



Removing the Palm Rest

1. Follow the procedures in Before You Begin.

2. Press and eject any installed cards from the ExpressCard slot or the 8-in-1 media card reader.

3. Remove the battery (see Removing the Battery).

4. Remove the base cover (see Removing the Base Cover).

5. Disconnect the antenna cables from the Mini-Card(s) (see Removing the Mini-Card).

6. Disconnect the subwoofer assembly cable from the subwoofer assembly cable connector on the system board.


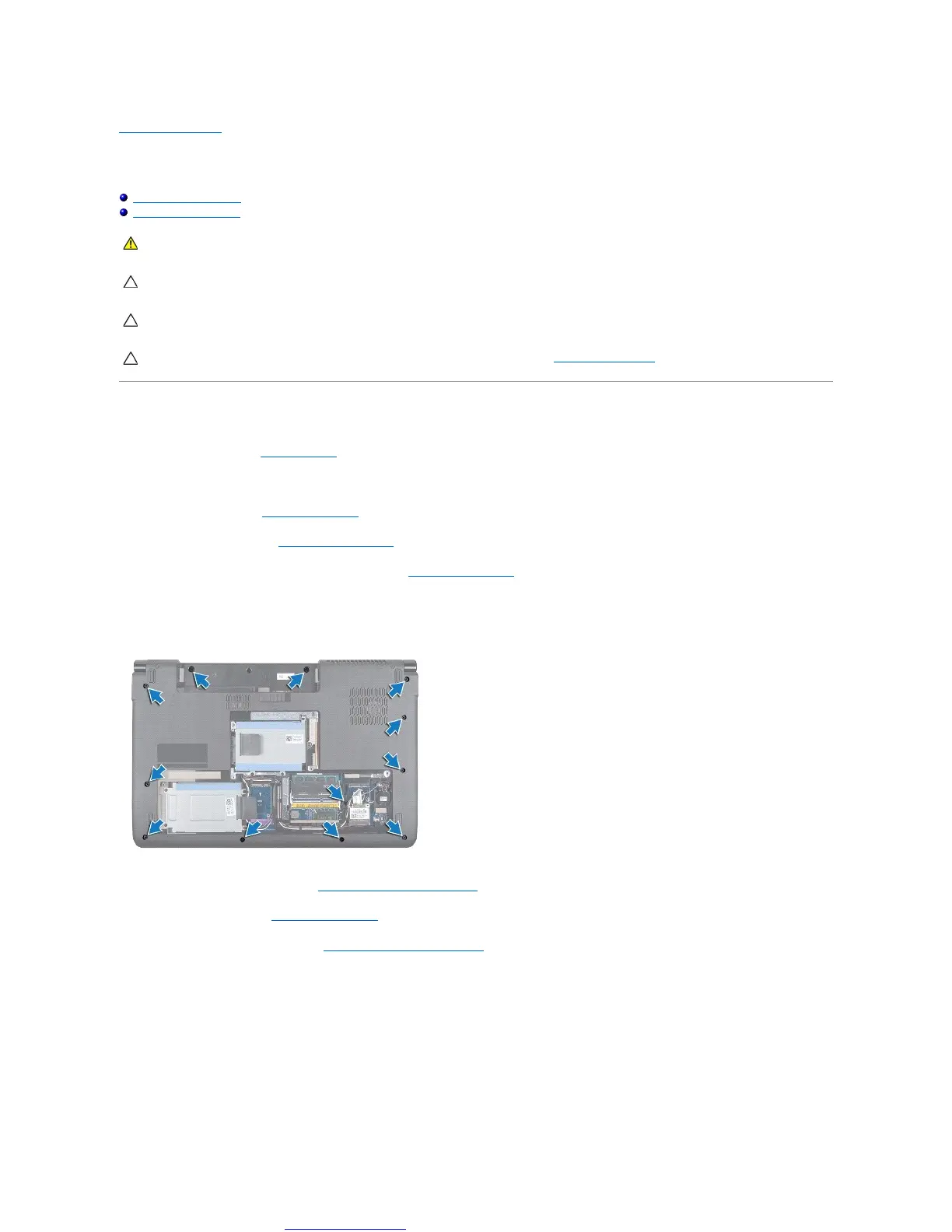

7. Remove the twelve screws from the computer base.

8. Remove the center control cover (see Removing the Center Control Cover).

9. Remove the keyboard (see Removing the Keyboard).

10. Remove the media controls board (see Removing the Media Controls Board).

11. Remove the six screws on the palm rest.
WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best
practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.
CAUTION: Onlyacertifiedservicetechnicianshouldperformrepairsonyourcomputer.DamageduetoservicingthatisnotauthorizedbyDell™
is not covered by your warranty.
CAUTION: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal
surface (such as a connector on your computer).
CAUTION: To help prevent damage to the system board, remove the main battery (see Removing the Battery) before working inside the
computer.
