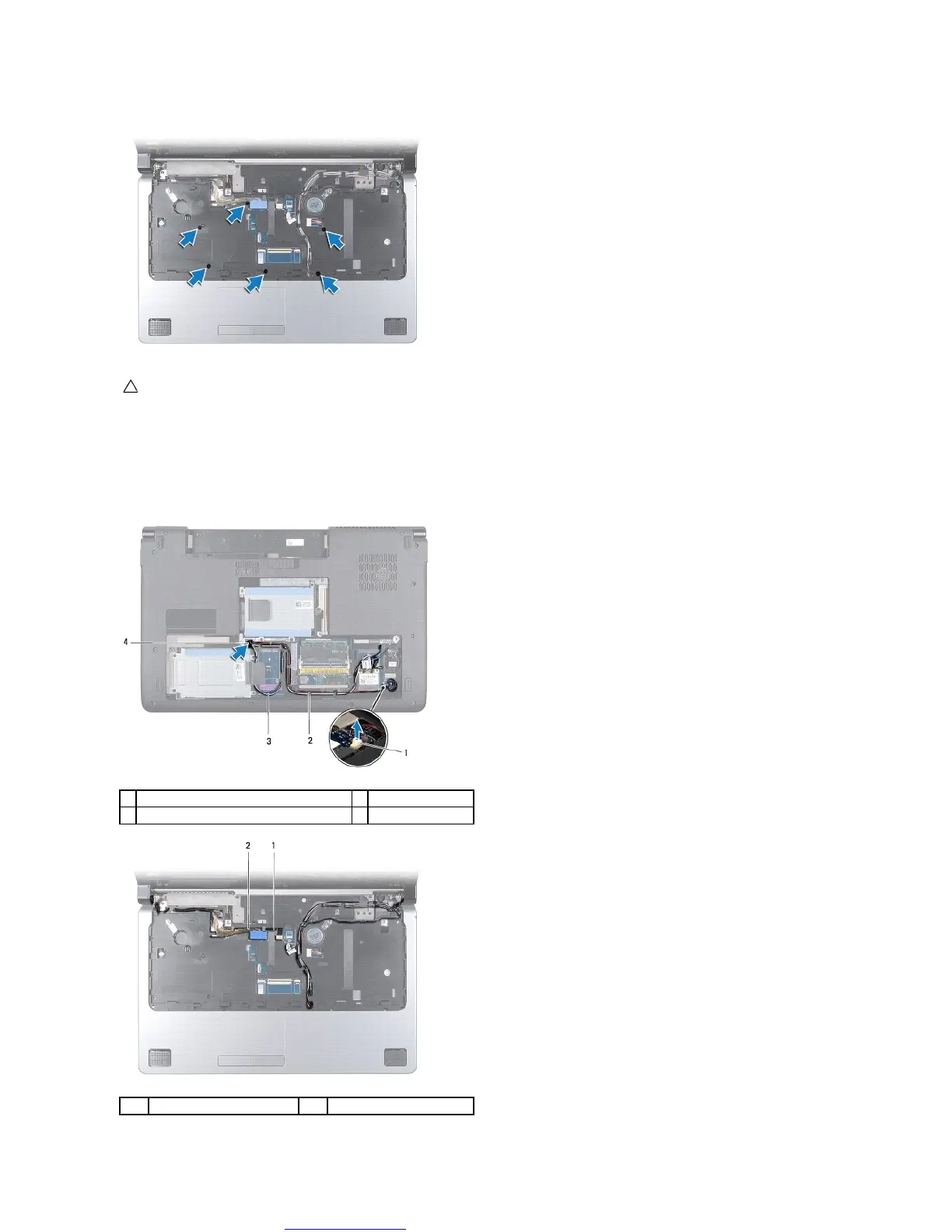

12. Disconnect the display cable, camera cable, power button cable, and the touch pad cable from the respective system board connectors.

13. Make note of the antenna cable and subwoofer cable routing, and carefully dislodge the cables from the routing guides and release them through the
slot.

14. Make note of the display cable, power button cable, and camera cable routing and carefully dislodge the cables form their routing guides.
CAUTION: Pull on the plastic tab on top of the connectors to avoid damaging the connectors.
1
subwoofer assembly cable connector
2
routing guides
3
antenna cables
4
cable routing slot
1
camera cable
2
display cable
