Dell Vostro 3450 - Display Assembly; Removing The Display Assembly

11
Display Assembly
Removing The Display Assembly
1. Follow the procedures in Before Working On Your Computer .
2. Remove the battery .
3. Remove the keyboard .
4. Remove the memory door .
5. Remove the optical drive .
6. Remove the palm rest .

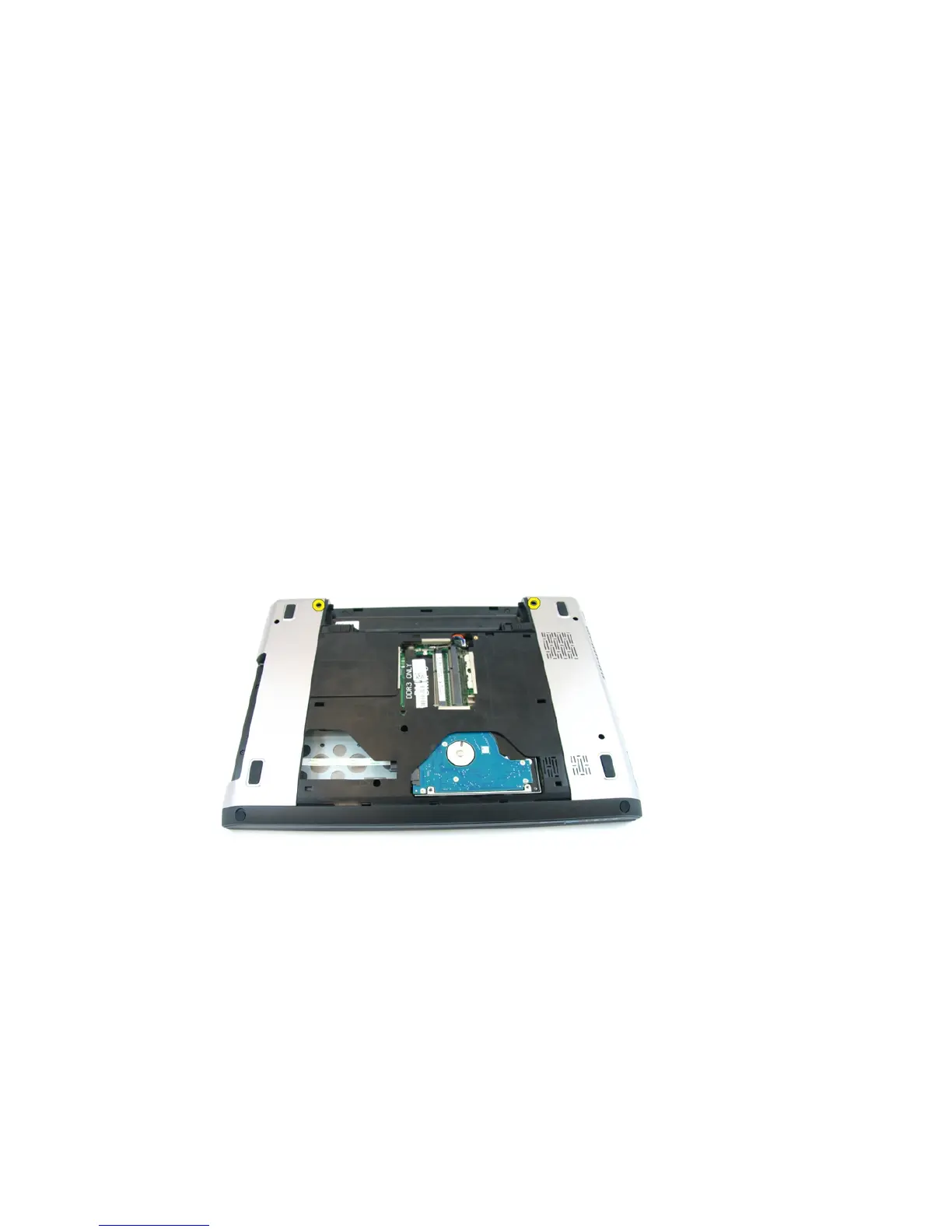

7. Remove the screws that secure the display hinge.
8. Loosen the screw that secures the low-voltage differential signaling (LVDS) cable.
41
