System Board
Removing The System Board
1. Follow the procedures in Before Working On Your Computer .
2. Remove the battery .
3. Remove the ExpressCard .
4. Remove the keyboard .
5. Remove the memory door .
6. Remove the optical drive .
7. Remove the palm rest .
8. Remove the hinge cover .
9. Remove the display assembly .
10. Remove the WLAN card
11. Remove the VGA board .
12. Remove the system fan .

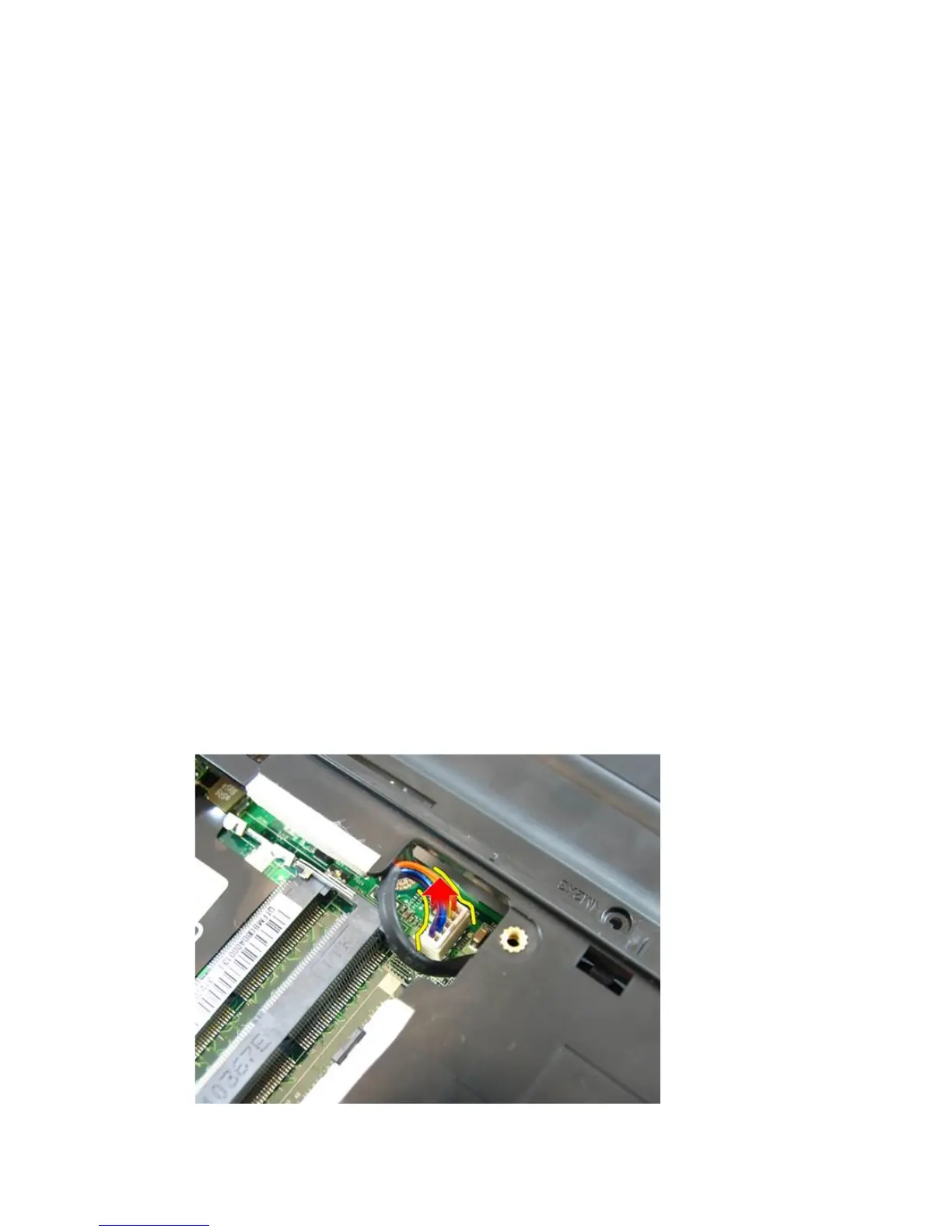

13. Disconnect the DC-in cable connector from the system board.
