Dell Vostro 3450 - Installing the System Fan

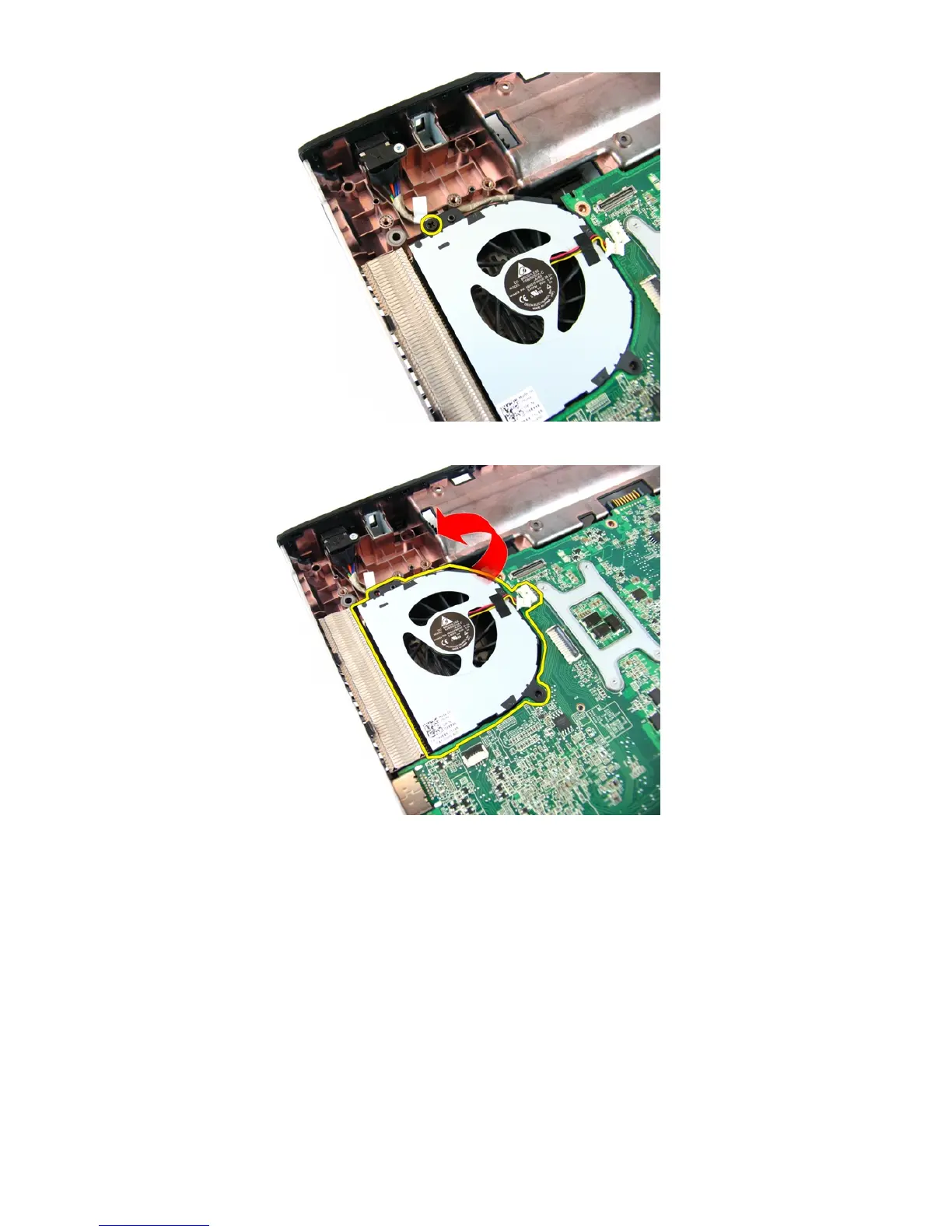

12. Remove the system fan from the bottom base module.
Installing The System Fan
1. Install the screw that secures the system fan.
2. Connect the system fan cable to the system board.
3. Install the VGA board
4. Install the hinge cover .
5. Install the display assembly .
6. Install the palm rest .
7. Install the memory door .
76
