Dell Vostro 3450 - Installing The Wireless Local Area Network (WLAN) Card

Installing The Wireless Local Area Network
(WLAN) Card

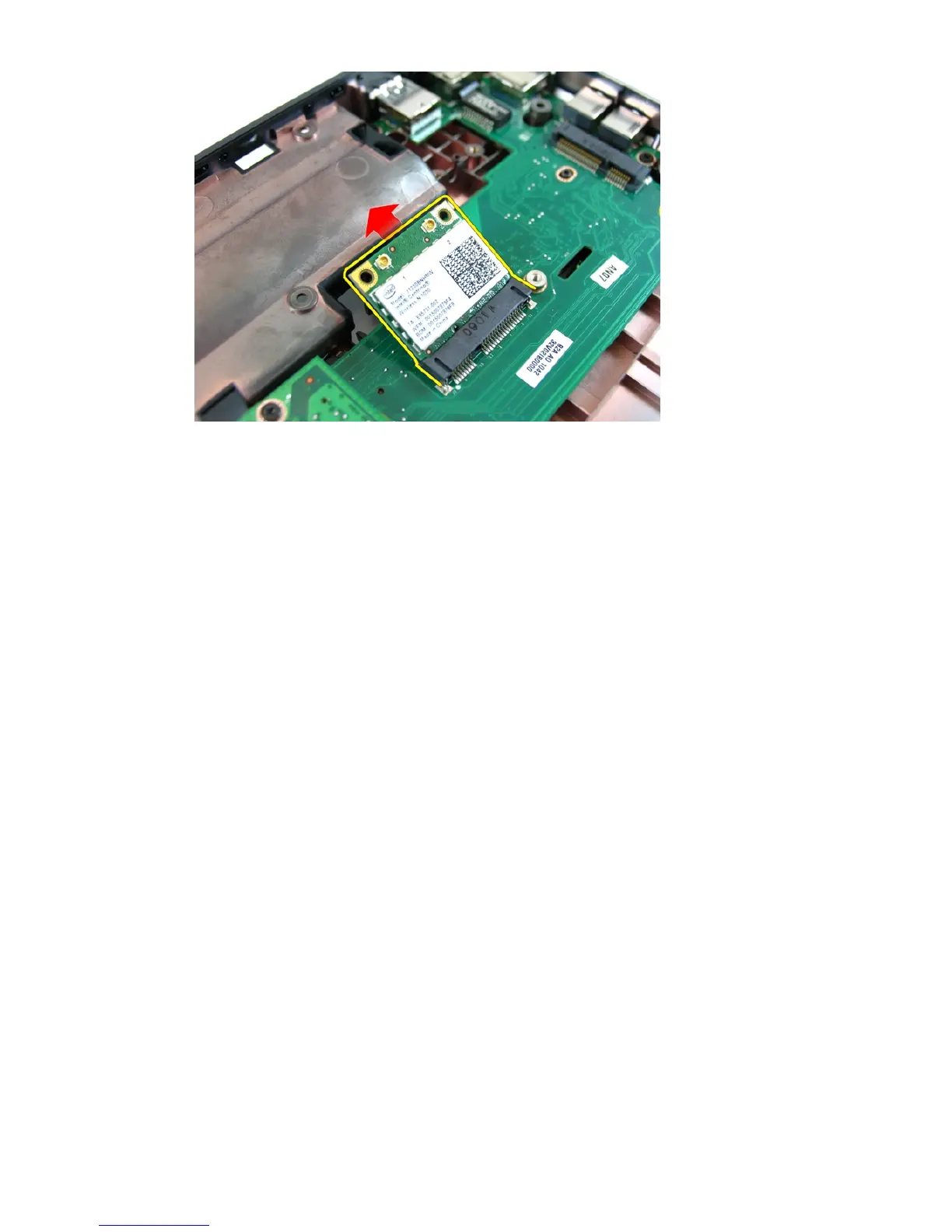

1. Slide the WLAN card into its slot.
2. Tighten the screw to secure the WLAN card in place.
3. Connect the antennae according to the color code on the WLAN card.
4. Install the palm rest .
5. Install the optical drive .
6. Install the memory door .
7. Install the keyboard .
8. Install the battery .
9. Follow the procedures in After Working Inside Your Computer .
