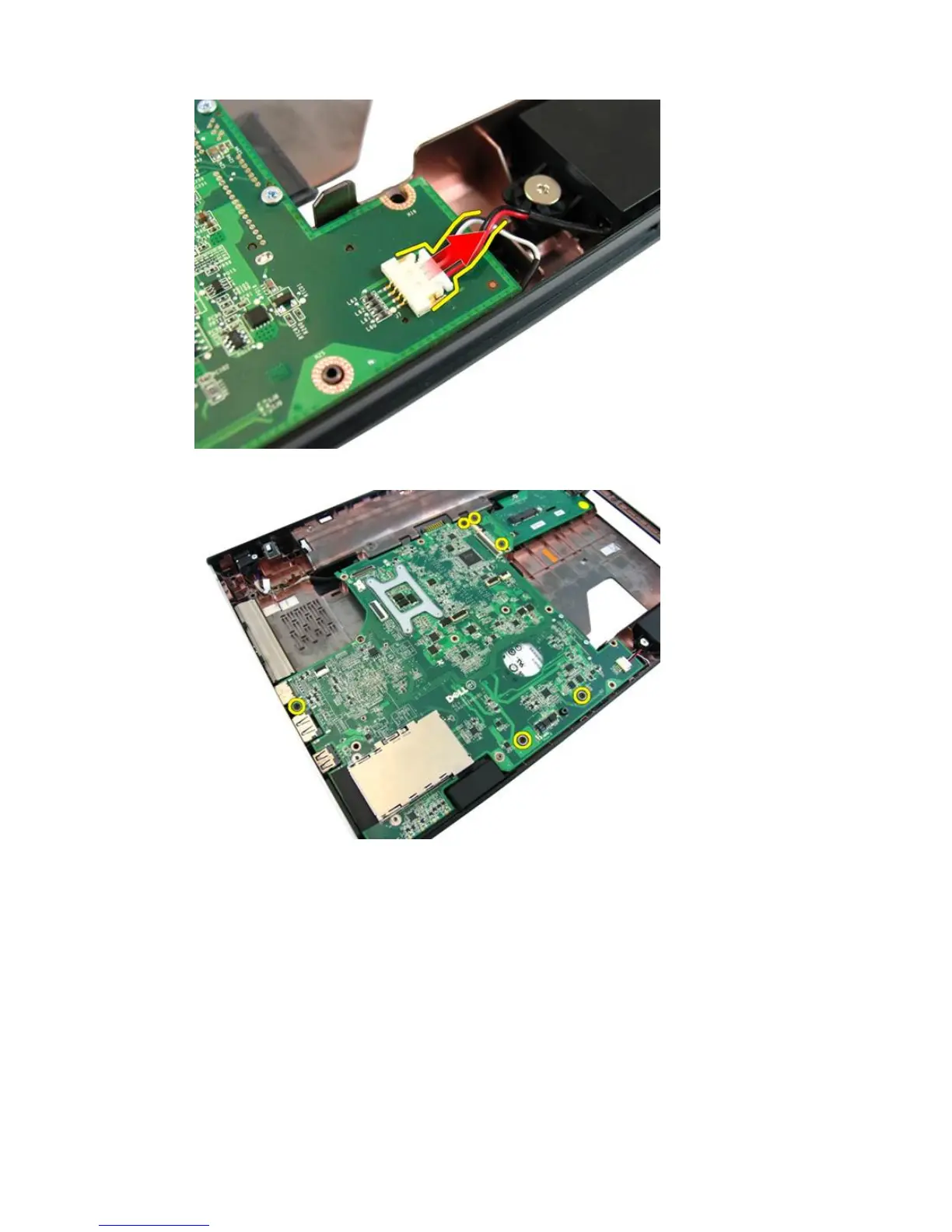

14. Disconnect the speaker cable from the system board.

15. Remove the screws that secures the system board.

16. Disconnect the system board from the Input/Output panel.

80
