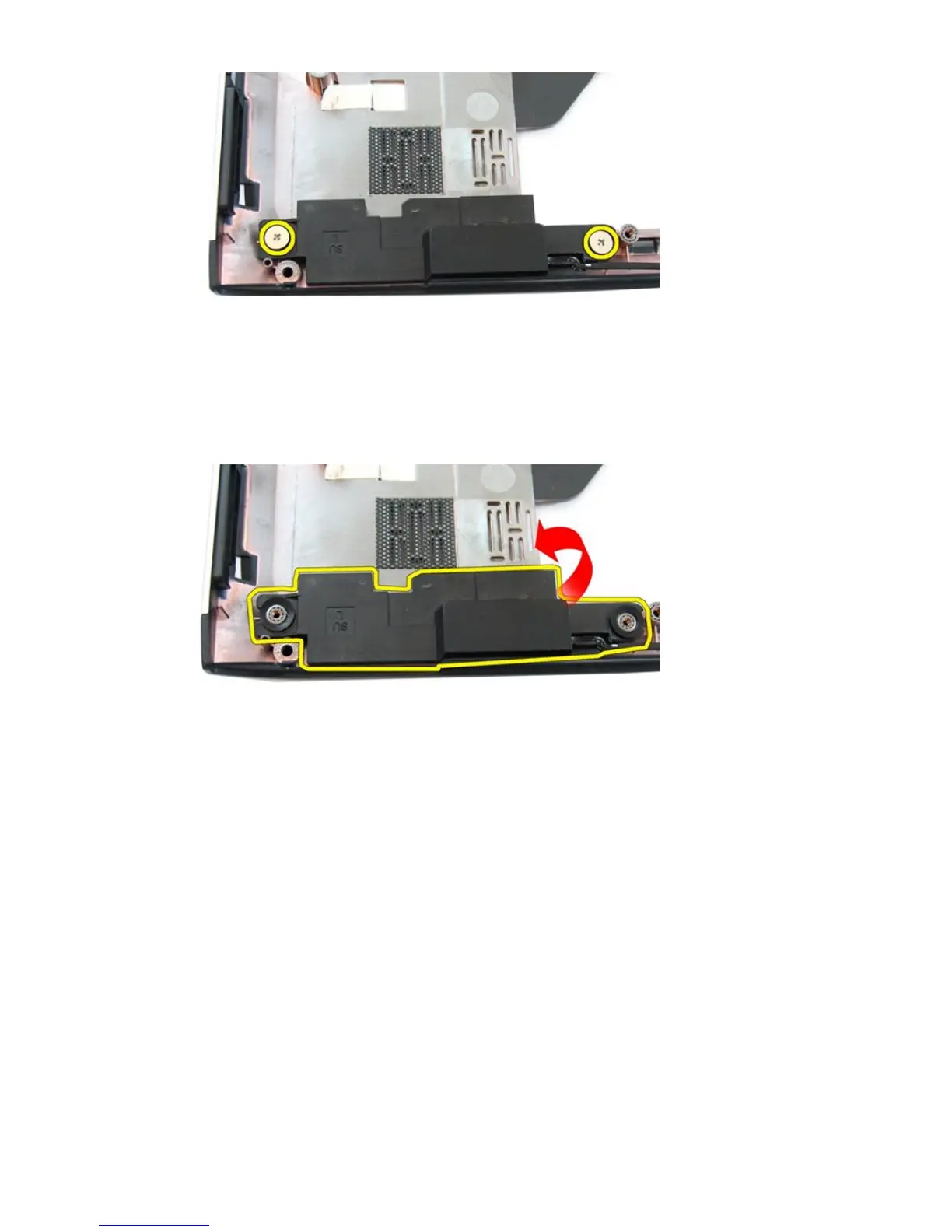

15. Lift the left speaker from the bottom base.

16. Remove the screws that secure the right speaker.

92
