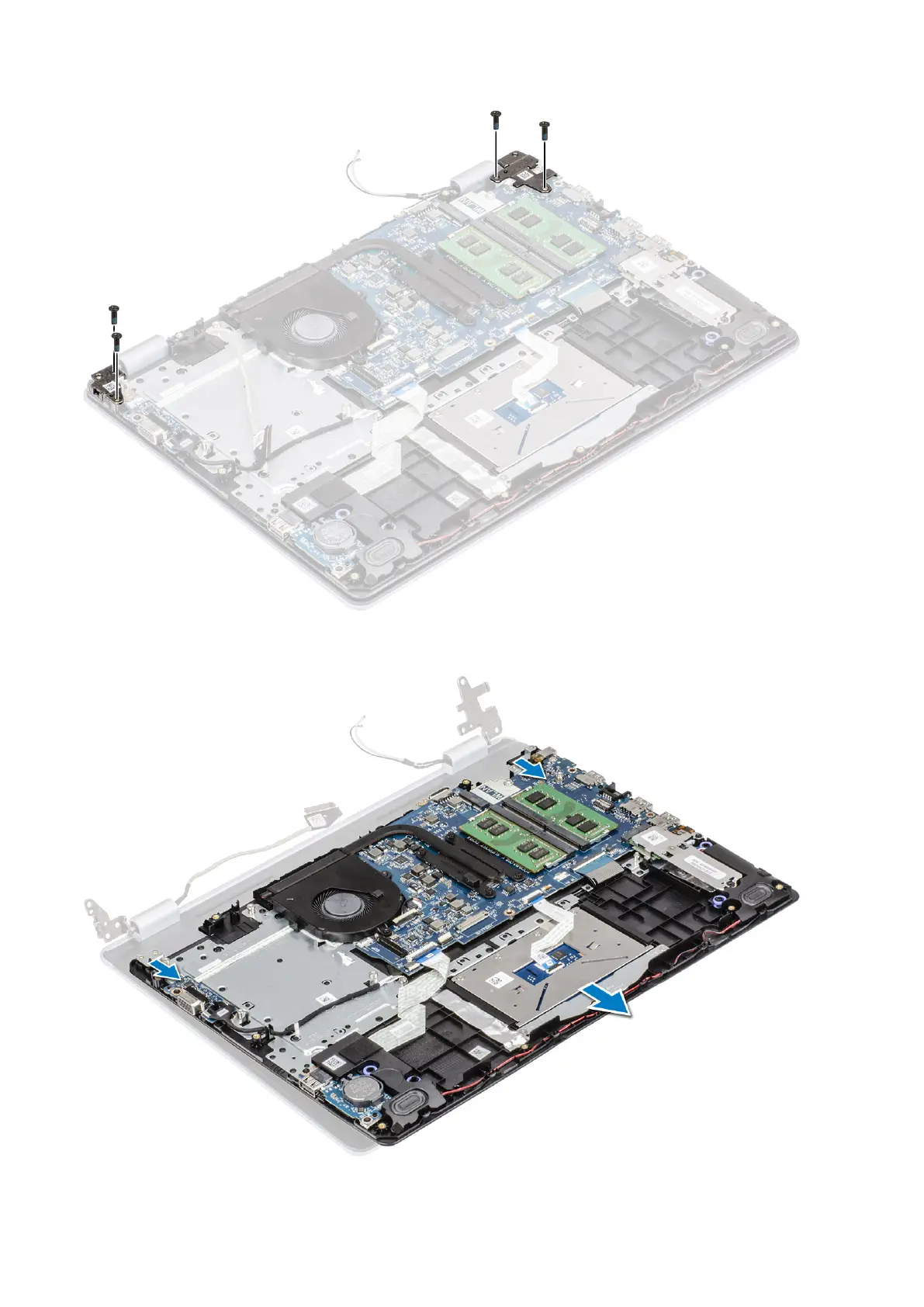

5. Lift the palmrest and keyboard assembly at an angle.
6. Slide and remove the palmrest and keyboard assembly off the display assembly.
7. After performing all the preceding steps, you are left with display assembly.
50
Removing and installing components
