Removing and installing components
Recommended tools
The procedures in this document require the following tools:
• Phillips #0 screwdriver
• Phillips #1 screwdriver
• Plastic scribe
NOTE:
The #0 screw driver is for screws 0-1 and the #1 screw driver is for screws 2-4
Screw list
The table provides the list of screws that are used for securing different components.

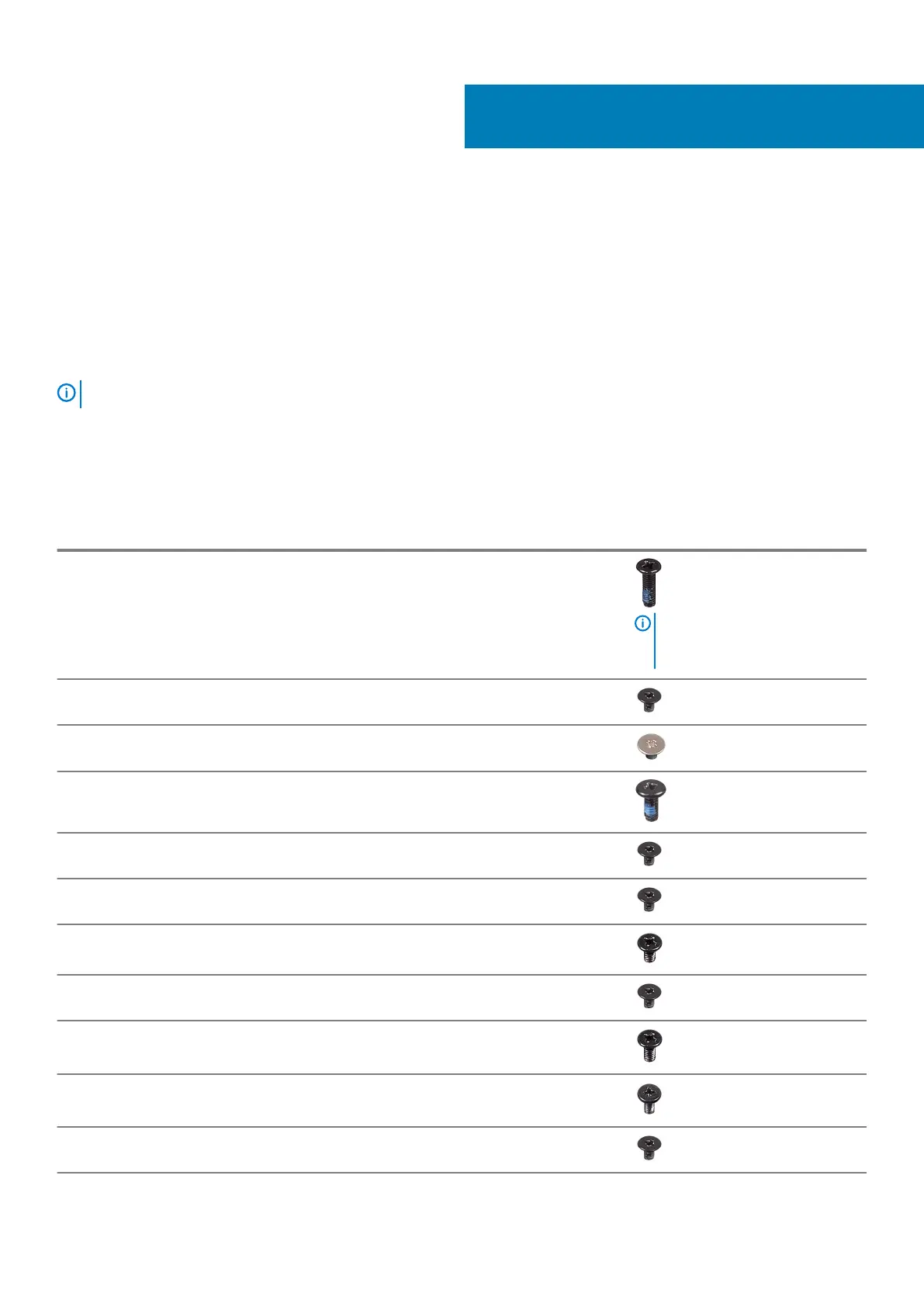

Table 1. Screw list
Component Screw type Quantity Screw image
Base cover M2.5x6 6
NOTE: Screw color may vary
depending on the
configuration ordered.
Battery M2x3 4
Display panel M2x2 4
System Fan M2x5 2
VGA daughterboard M2x3 2
Hard-drive assembly M2x3 4
Hard-drive bracket M3x3 4
Heat sink - discrete M2x3 3
Hinges M2.5x2.5 10
I/O board M2x4 2
Optical-drive bracket M2x3 2
2
Removing and installing components 9
