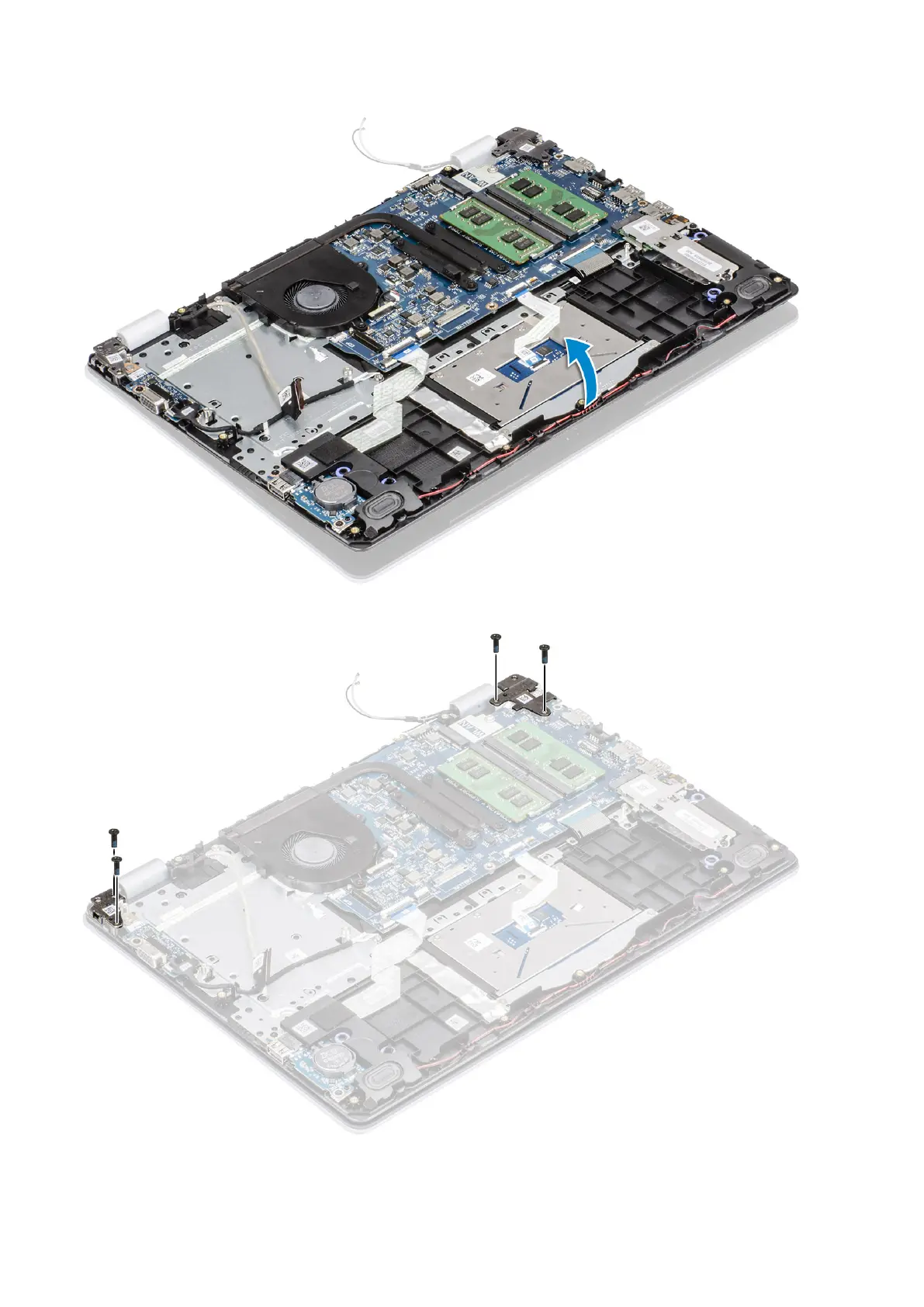

3. Replace the four (M2.5x6) screws that secure the left and right hinges to the system board, and palmrest and keyboard assembly.
4. Route the display cable through the routing guides on the palmrest and keyboard assembly [1, 2].
5. Connect the display cable to the connector on the system board [3].
