4. Disconnect the battery cable from the connector on the system board
5. Remove the memory
6. Remove the WLAN
7. Remove the SSD
8. Remove the hard drive assembly
9. Remove the system fan
10. Remove the heatsink
11. Remove the display assembly
Steps

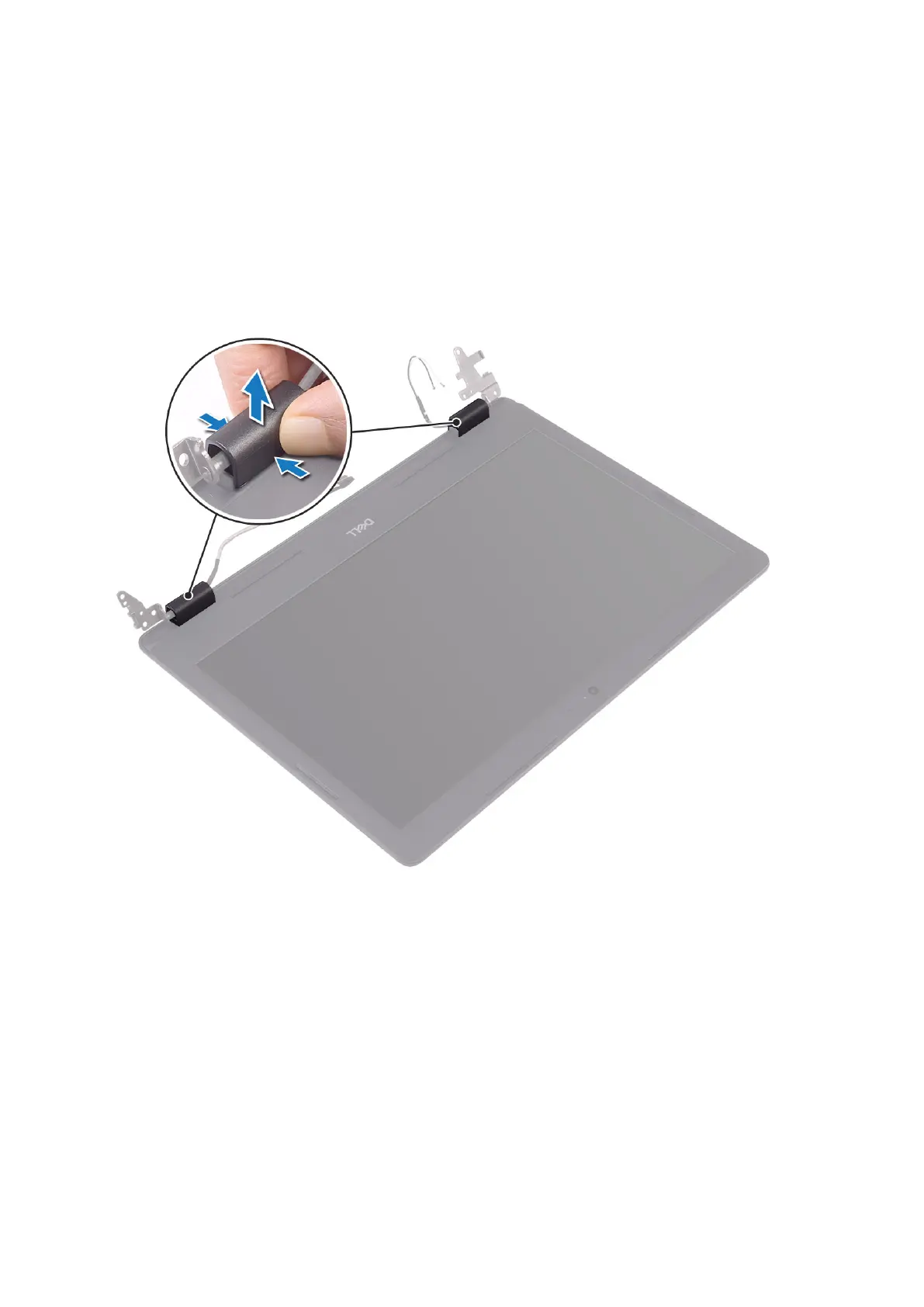

1. Push both sides of the display-hinge cover and lift it from the display back-cover and antenna assembly.
2. Pry the display bezel to release it from the display back-cover and antenna assembly 1].
3. Lift the display bezel off the display back-cover and antenna assembly [2].
