Dell Vostro 5470 - Base Cover Procedures

7. hard drive
8. system fan
9. system board
10. memory module
11. heatsink
Removing the Base Cover
1. Follow the procedures in Before Working Inside Your Computer .

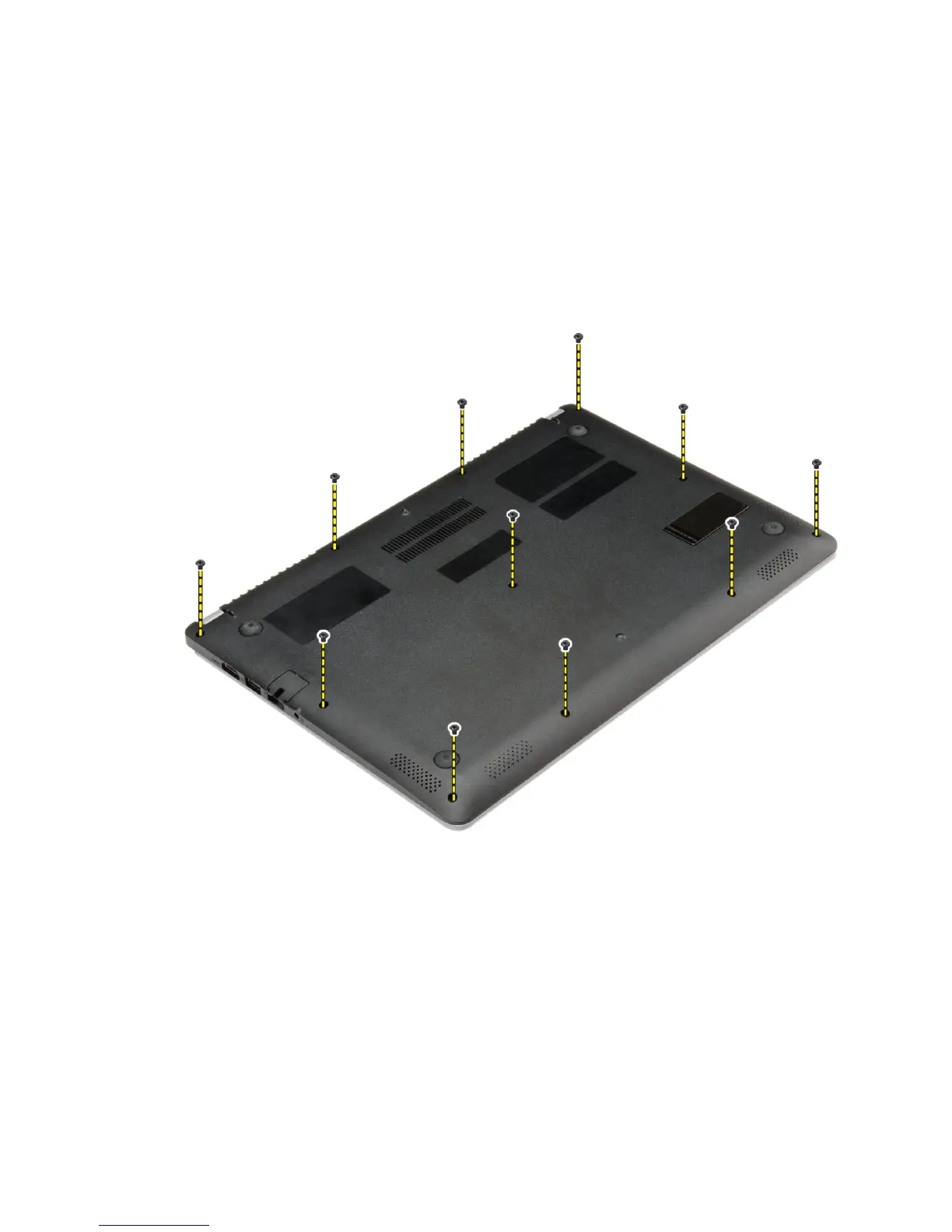

2. Remove the screws that secure the base cover to the computer.
3. Pry the base cover along the edges to loosen it.
