Dell Vostro 5480 - Base Cover and Battery Service

1. camera-status light
2. camera
3. microphone
4. power-status light
5. battery-status light
6. hard-drive activity light
7. power button
8. HDMI connector
9. USB 3.0 connector
10. network connector
11. headset connector
12. fingerprint reader
13. microphones
14. touchpad
15. memory card reader
16. USB 3.0 connector
17. USB 3.0 connector with PowerShare
18. power connector
19. security-cable slot

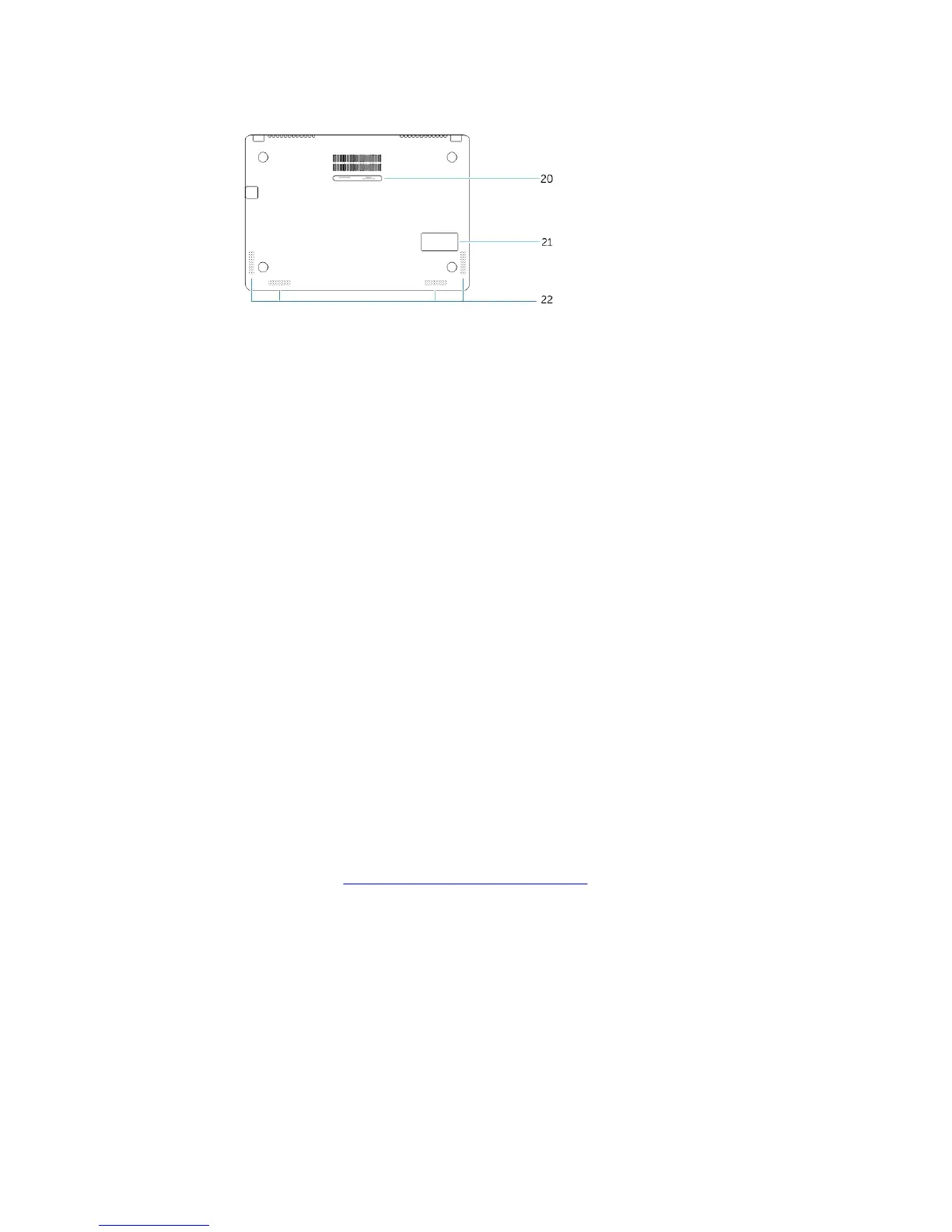

20. service-tag label
21. sub-woofer speaker
22. speakers
Removing the Base Cover
1. Follow the procedures in Before Working Inside Your Computer.
2. Remove the screws that secure the base cover to the computer.
