System overview
The VxRail P670F is a 2U server that supports:
● Up to two third-generation Intel Xeon Scalable processors
● 16 DDR4 DIMM slots for single-socket configuration and 32 DDR4 DIMM slots for dual-socket configuration
● Two fault tolerant redundant (FTR) mixed mode power supply units
● The following storage configurations:
○ For a single-socket configuration: Up to 24 x 2.5-inch SAS/SATA front disk drives with four universal slots to support
optional NVMe drives. No support for rear disk drive.
○ For a dual-socket configuration: Up to 24 x 2.5-inch SAS/SATA front disk drives (with four universal slots to support
optional NVMe drives) and 4 x 2.5-inch SAS/SATA rear disk drives.
The VxRail P670N is a dual-socket, 2U server that supports:
● Two third-generation Intel Xeon Scalable processors
● 32 DDR4 DIMM slots
● Two FTR mixed mode power supply units
●
Up to 24 x 2.5-inch all NVMe front disk drives
● DPU/SmartNIC
You cannot mix different capacity drives in VxRail P670N.
The VxRail V670F is a dual-socket, 2U server that supports:
● Two third-generation Intel Xeon Scalable processors
● 32 DDR4 DIMM slots
● Two FTR mixed mode power supply units
● Up to 24 x 2.5-inch SAS/SATA front disk drives (with four universal slots to support optional NVMe drives)
● DPU/SmartNIC
The VxRail S670 is a 2U server that supports:
● Up to two third-generation Intel Xeon Scalable processors
● 32 DDR4 DIMM slots
● Two FTR mixed mode power supply units
● Up to 12 x 3.5-inch SAS/SATA front disk drives with 4 x 2.5-inch SAS/SATA/NVMe rear disk drives.
NOTE:
All instances of SAS, SATA drives, PCIe SSDs, and NVMe are referred to as drives in this document, unless specified
otherwise.
For more information about supported drives, see the Dell VxRail™ P670F, P670N, V670F, and S670 Technical Specifications.
Front view of the system

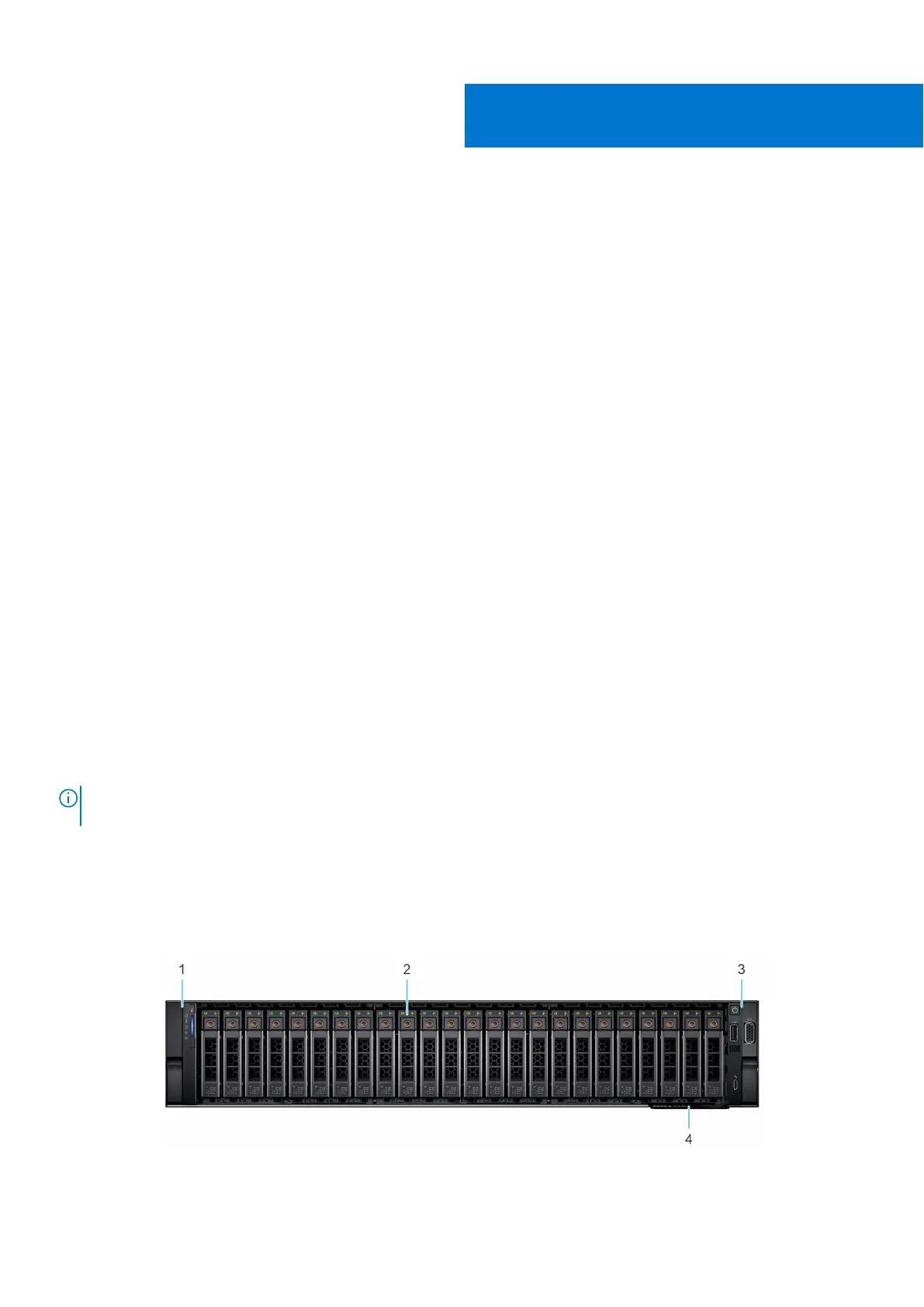

The following figure shows the front view of the VxRail P670F, P670N, and V670F 24 x 2.5-inch drive system:
The following figure shows the front view of the VxRail S670 12 x 3.5-inch drive system:
