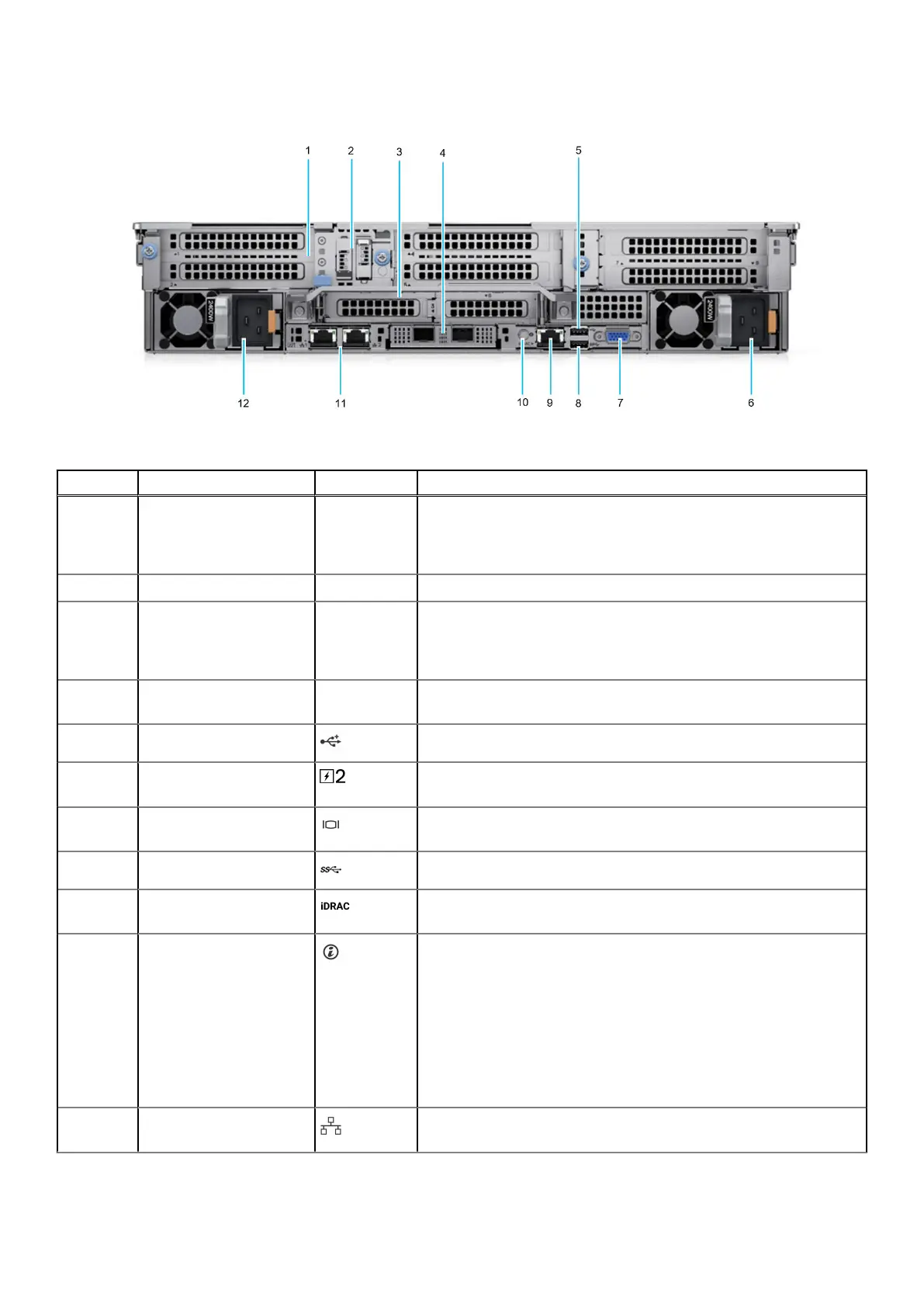

Item Ports, panels, or slots Icon Description
1 PCIe expansion card riser
1 (slot 1 and slot 2)
N/A The expansion card riser enables you to connect PCI Express
expansion cards. For more information about the expansion cards
supported on your system, see the Dell VxRail™ P670F, P670N,
V670F, and S670 Technical Specifications.
2 BOSS S2 module N/A This slot supports the BOSS S2 module.
3 PCIe expansion card riser
2 (slot 3)
N/A The expansion card riser enables you to connect PCI Express
expansion cards. For more information about the expansion cards
supported on your system, see the Dell VxRail™ P670F, P670N,
V670F, and S670 Technical Specifications.
4 OCP NIC port N/A This port supports OCP 3.0. The NIC ports are integrated on the
OCP card which is connected to the system board.
5 USB 2.0 port (1) This port is USB 2.0-compliant.
6 Power supply unit (PSU
2)
For more information about the PSU configurations, see the Dell
VxRail™ P670F, P670N, V670F, and S670 Technical Specifications.
7 VGA port For more information about the VGA, see the Dell VxRail™ P670F,
P670N, V670F, and S670 Technical Specifications.
8 USB 3.0 port (1) This port is USB 3.0-compliant.
9 iDRAC dedicated port Enables you to remotely access iDRAC. For more information, see the
iDRAC User's Guide at www.dell.com/poweredgemanuals.
10 System identification
button
Press the system ID button:
● To locate a particular system within a rack.
● To turn the system ID on or off.
To reset iDRAC, press and hold the button for more than 16 s.
● To reset iDRAC using system ID, ensure that the system ID
button is enabled in the iDRAC setup.
● If the system stops responding during POST, press and hold the
system ID button (for more than 5 s) to enter the BIOS progress
mode.
11 NIC port (1,2) The NIC ports are embedded on the LOM card that is connected to
the system board.
System overview 9
