Dell W23C User Manual

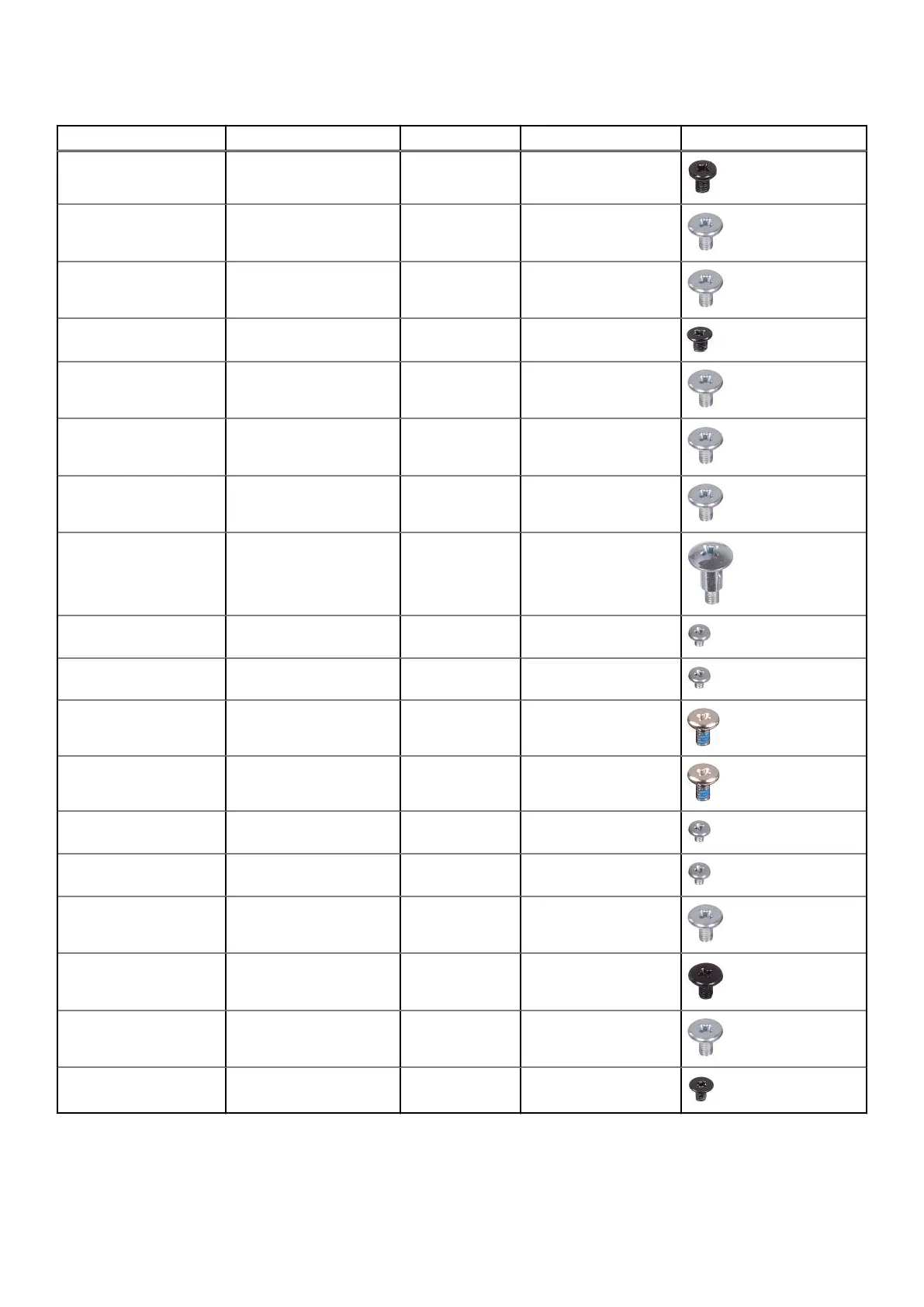

Table 1. Screw list
Component Secured to Screw type Quantity Screw image
Stand Display-assembly base M3x4 8
Bottom cover Display-assembly base M3 0.5x5 5
Hard-drive assembly Display-assembly base M3 0.5x5 2
Hard-drive bracket Hard drive M3x3.5 4
System-board shield Display-assembly base M3 0.5x5 4
Retractable-camera
assembly door
Base panel M3 0.5x5 2
Retractable-camera
bezel
Retractable-camera
bracket
M3 0.5x5 3
Speakers Display-assembly base M3 4+7.1xZN 6
Microphone modules Base panel M2x2.5 8
Fan Display-assembly base M2x2.5 3
Wireless-card shield System board M2x4 2
Wireless-card bracket Wireless card M2x4 1
Solid-state drive System board M2x2.5 1
Antenna modules Base panel M2x2.5 2
System board Display-assembly base M3 0.5x5 5
Base panel Display-assembly base M3x5 21
Display panel Display-assembly base M3 0.5x5 12
Media-card reader Display-assembly base M2x3 1
12 Removing and installing components
