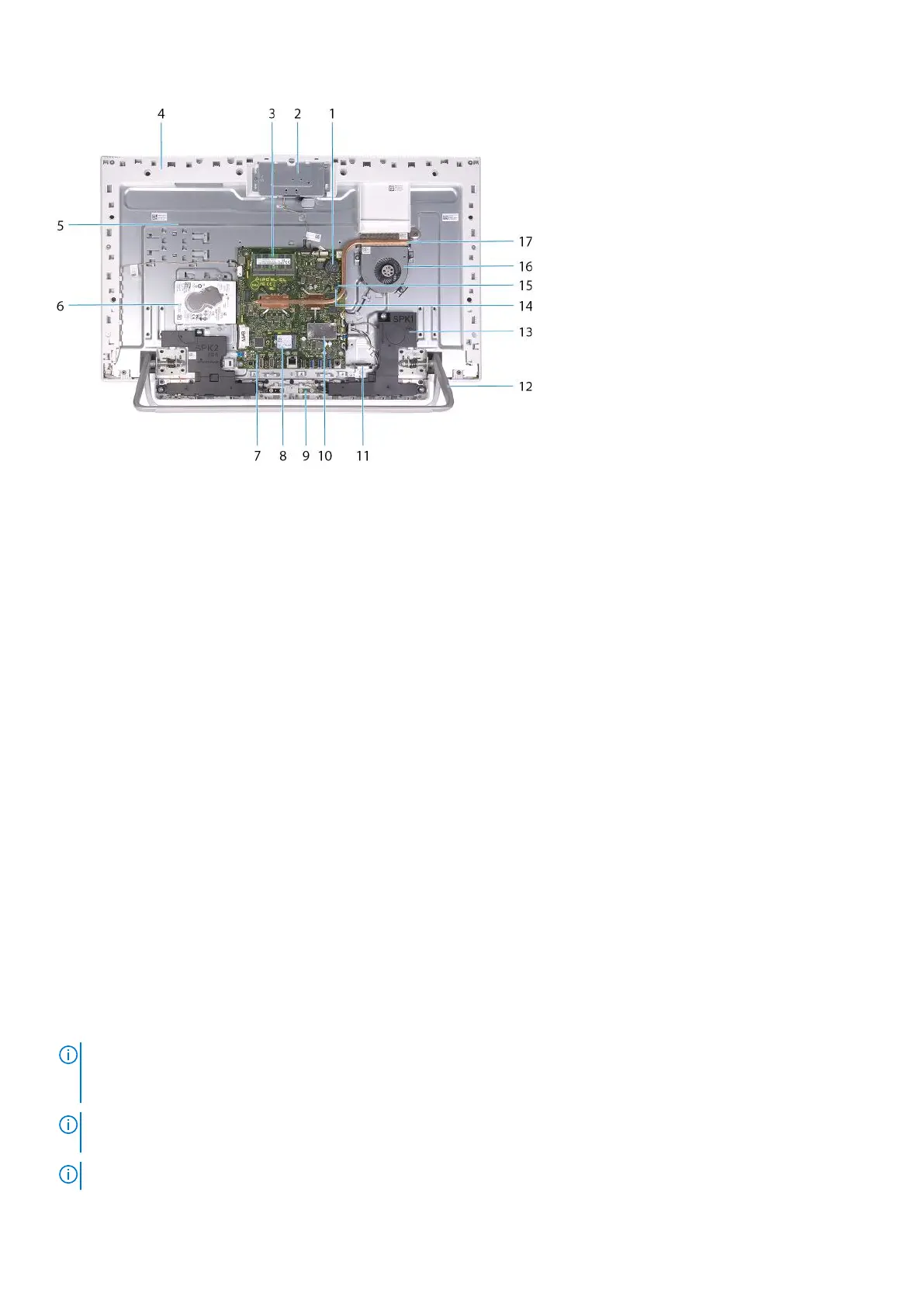

1. coin-cell battery
2. retractable-camera assembly
3. memory modules
4. base panel
5. display-assembly base
6. hard drive
7. system board
8. solid-state drive
9. microphones (2)
10. wireless-card shield
11. media-card reader
12. stand
13. speakers (2)
14. password clear jumper
15. CMOS clear jumper
16. fan
17. heat sink
Recommended tools
The procedures in this document may require the following tools:
● Phillips screwdriver #1
● Flat-head screwdriver
● Plastic scribe
Screw list
NOTE:
When removing screws from a component, it is recommended to note the screw type, the quantity of screws, and
then place them in a screw storage box. This is to ensure that the correct number of screws and correct screw type is
restored when the component is replaced.
NOTE: Some computers have magnetic surfaces. Ensure that the screws are not left attached to such surfaces when
replacing a component.
NOTE: Screw color may vary with the configuration ordered.
Removing and installing components 11
