Steps

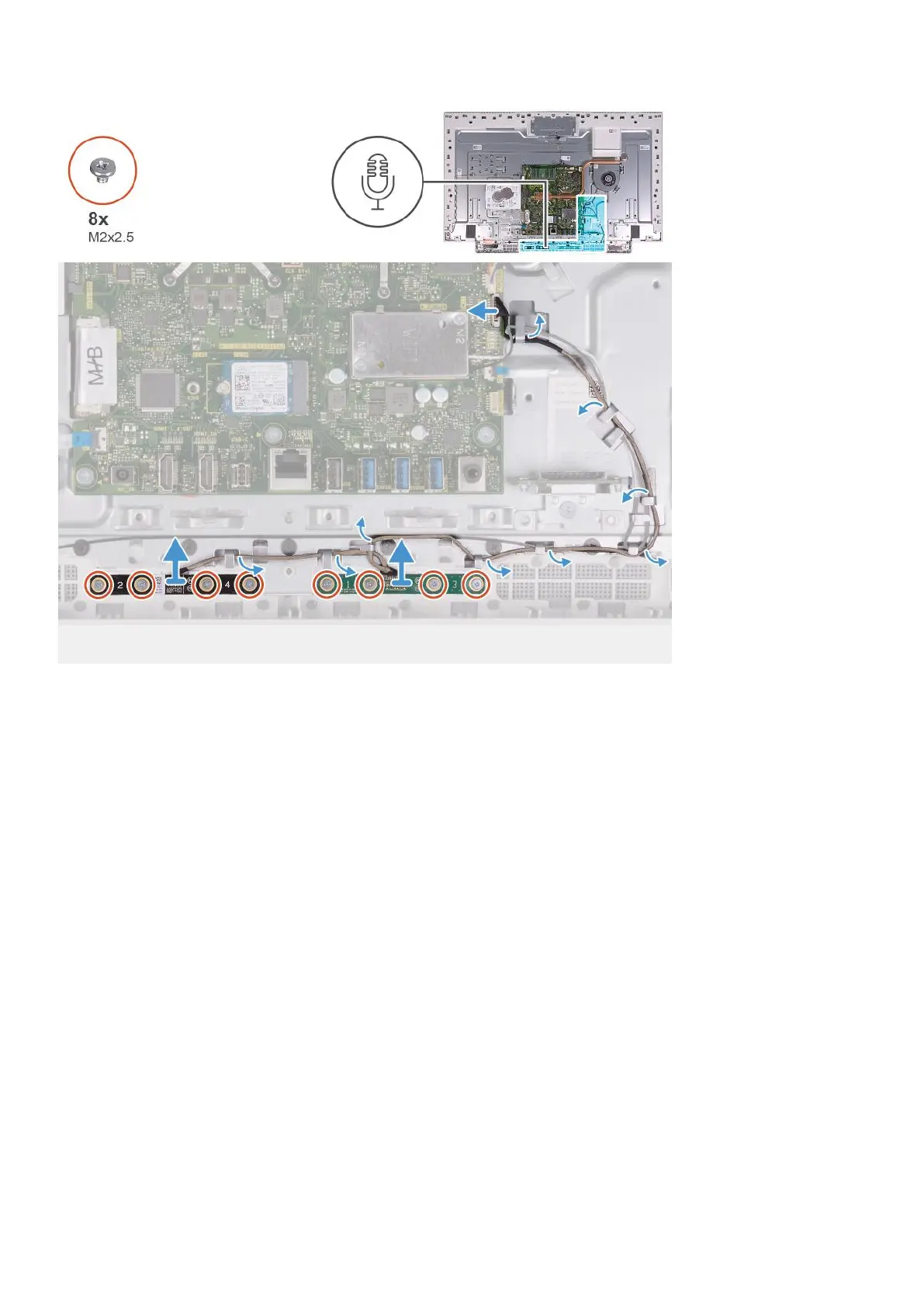

1. Disconnect the microphone cable from the system board and release it from the routing guides on the display-assembly
base.
2. Remove the eight screws (M2X2.5) that secure the microphone modules (2) to the base panel and release them from the
routing guides on the display-assembly base.
3. Lift the microphone modules (2) off the slots on the base panel.
Installing the mircrophones
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following image indicates the location of the microphones and provides a visual representation of the installation procedure.
36
Removing and installing components
