Steps

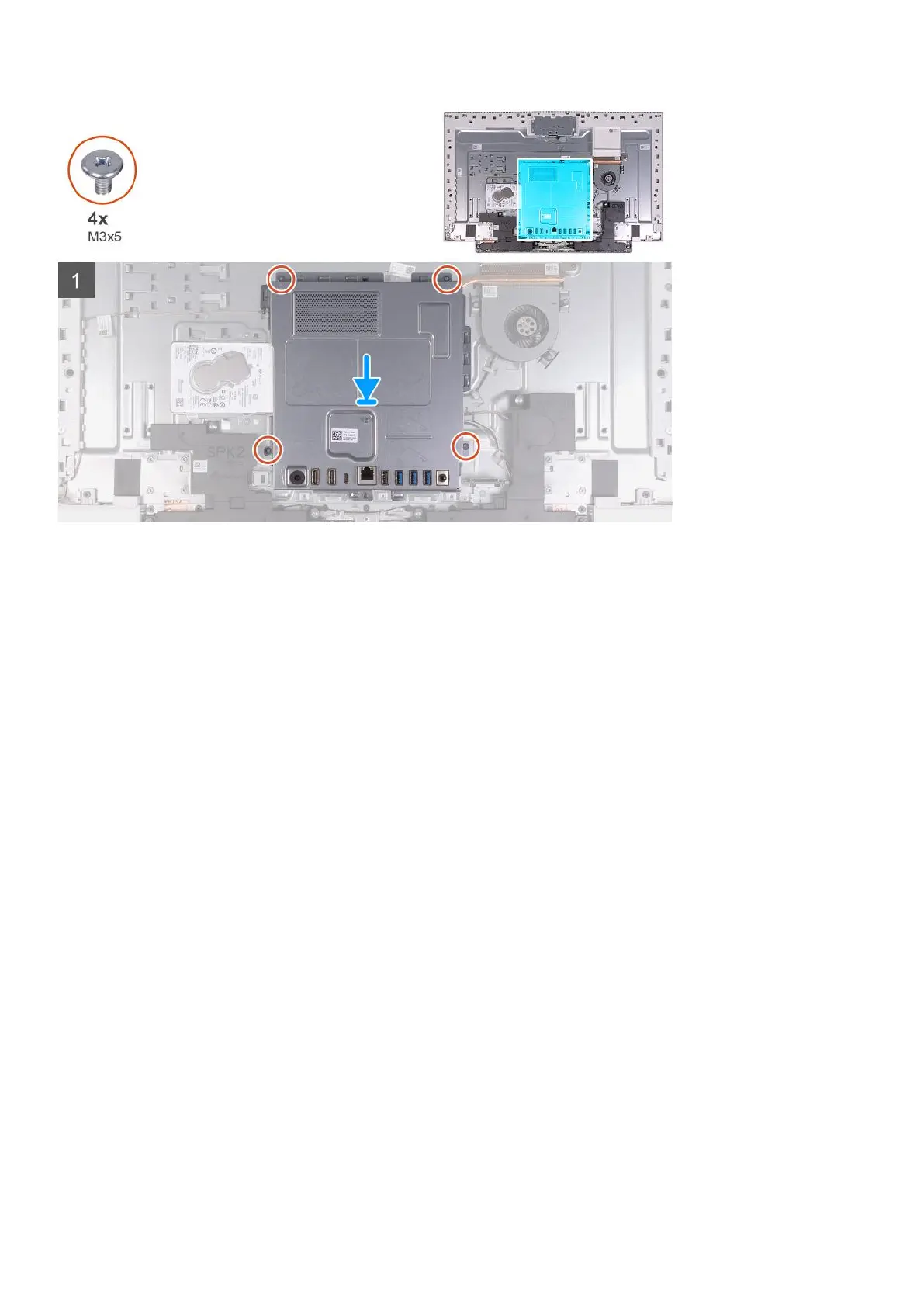

1. Align the slots on the system-board shield with the ports on the computer.
2. Replace the four screws (M3x5) that secure the system-board shield to the display-assembly base.
Next steps
1. Install the stand.
2. Install the bottom cover.
3. Install the back cover.
4. Follow the procedure in After working inside your computer.
Memory modules
Removing the memory modules
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the back cover.
3. Remove the bottom cover.
4. Remove the stand.
5. Remove the system-board shield.
About this task
The following image indicates the location of the memory modules and provides a visual representation of the removal
procedure.
22
Removing and installing components
To Next Page
