Steps

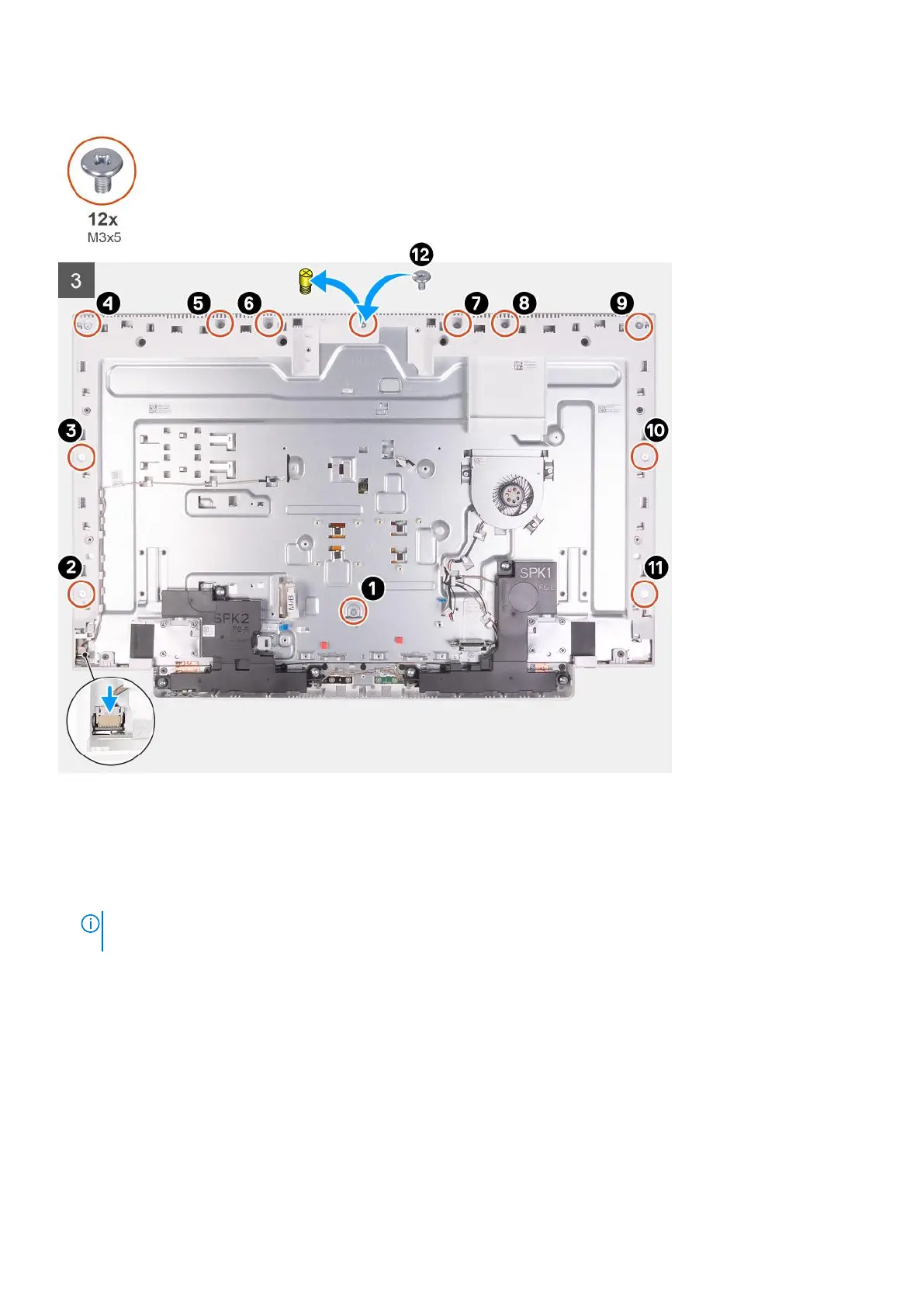

1. Align and place the display panel on the slots of the display-assembly base.
2. Route the display back-light, touch screen and display cable though the slots on the display assembly base.
3. Place the display-assembly base on a clean and flat surface with the display panel facing down.
4. Replace the 11 screws (M3x5) that secure the display panel to the display-assembly base.
NOTE:
The screws that secure the middle frame and display panel to the display-assembly base are silver in color and
etched with "LCD" around the screw holes.
5. Remove the jig screw from the display panel.
6. Replace the screw (M3x5) that secure the display panel to the display-assembly base.
Next steps
1. Install the system board.
2. Install the system-board shield.
3. Install the hard drive.
4. Install the stand.
5. Install the bottom cover.
6. Install the back cover.
7. Follow the procedure in After working inside your computer.
