About this task

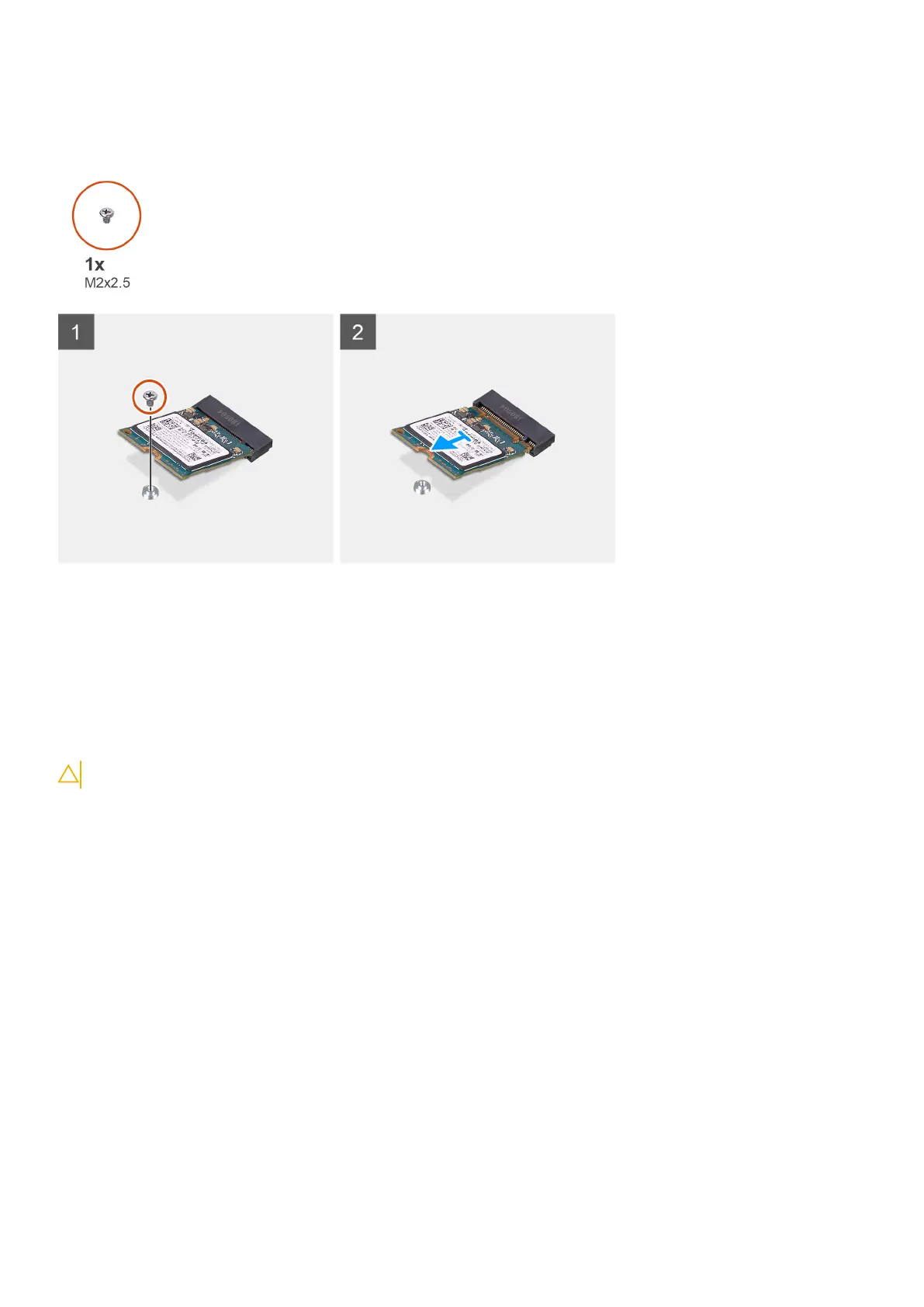

The following image provides a visual representation of the M.2 2230 solid-state drive removal procedure.
Steps
1. Remove the screw (M2x2.5) that secures the solid-state drive to the system board.
2. Slide and remove the solid-state drive from the M.2 card slot on the system board.
Installing the M.2 2230 solid-state drive
Prerequisites
CAUTION: Solid-state drives are fragile. Exercise care when handling the solid-state drive.
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following image provides a visual representation of the M.2 2230 solid-state drive installation procedure.
30
Removing and installing components
