Steps

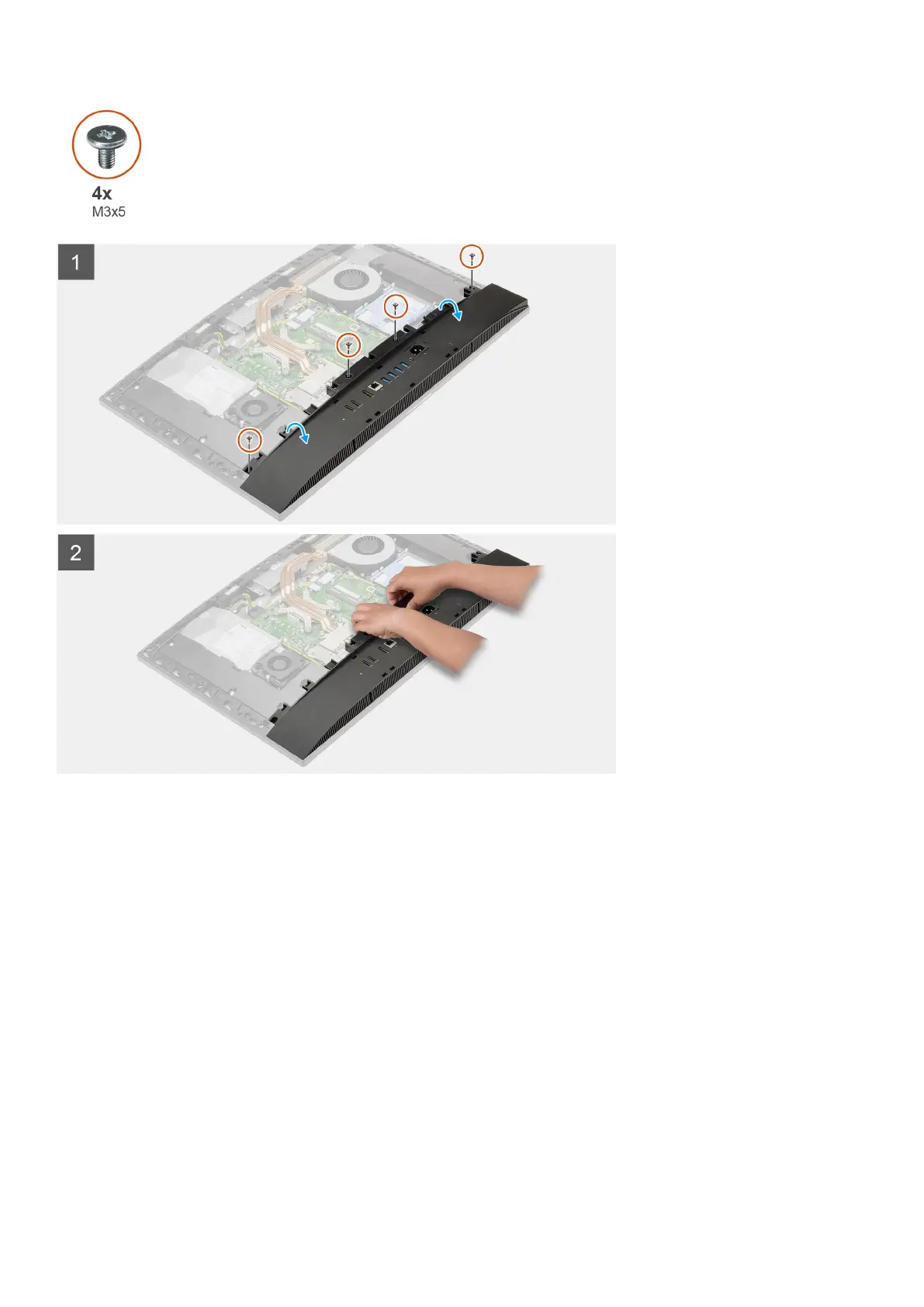

1. Remove the four screws (M3x5) that secure the bottom cover to the display-assembly base.
2. Lift the bottom cover off the display-assembly base.
Installing the bottom cover
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following image provides a visual representation of the bottom cover installation procedure.
Removing and installing components
43
