The Z9100–ON system
The following sections describe the Dell Z9100–ON system:
Topics:
Introduction
Features
Physical dimensions
Luggage tag
System status
LED display
Prerequisites
Z9100–ON congurations
Introduction
The Z9100-ON is a one rack unit compact 10/25/40/50/100 GbE switch. The system includes 32 xed quad form-factor pluggable 28
(QSFP28) optics for 40/100 GbE aggregation and 10/25/40/50 GbE top-of-rack (ToR) and end-of-row (EoR) applications. The Z9100–
ON system includes two hot-swap AC or DC power supply units (PSUs) and ve hot-swap fan units.

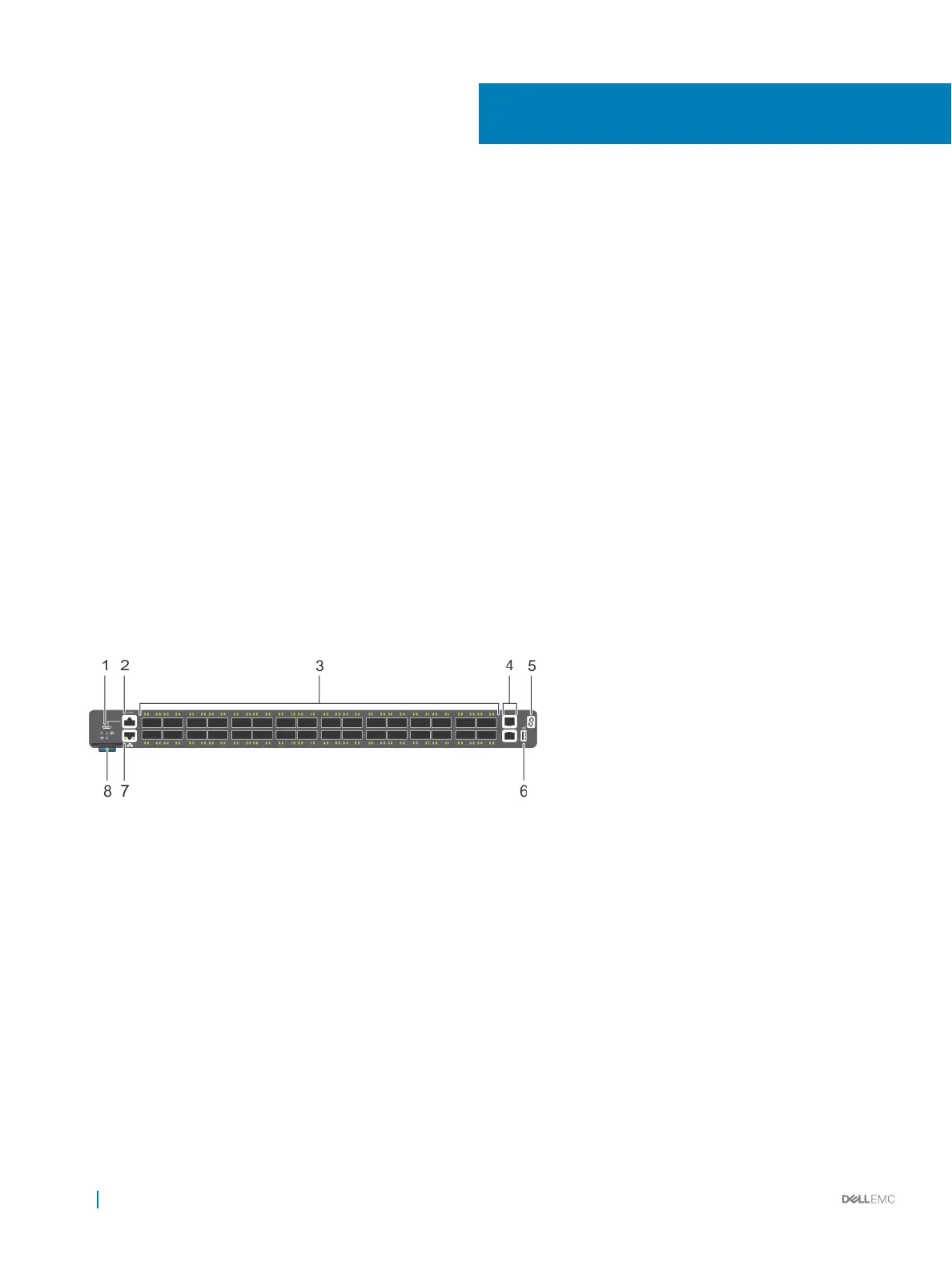

Figure 2. Z9100–ON I/O-side view
1
MicroUSB-B console port 2 RS-232/RJ45 serial console port
3 Thirty–two 10/25/40/50/100 QSFP28 ports 4 1000M/10G SFP+ ports
5 Stack ID 6 USB Type A storage
7 10/100/1000BaseT Ethernet management port 8 Luggage tag
2
6 The Z9100–ON system
