DeLonghi DE60PYROS - Electric Diagram

Fig. 1.4
1
99a
6
14
4
12
12a
3
11
8
1616a
2
1010a
7
1515a
5
1313a
1a
6a
3a
8a
2a
7a
5a
CIR
G
C
S INT.
S EXT.
3334
2
3
4
M
L
N
DL
F1
F1
TH
1
2
3
4
5
6
7
V
LF
LF
CF
SD
ST
SL
PR
ST1
ST4
ST3
TL
T

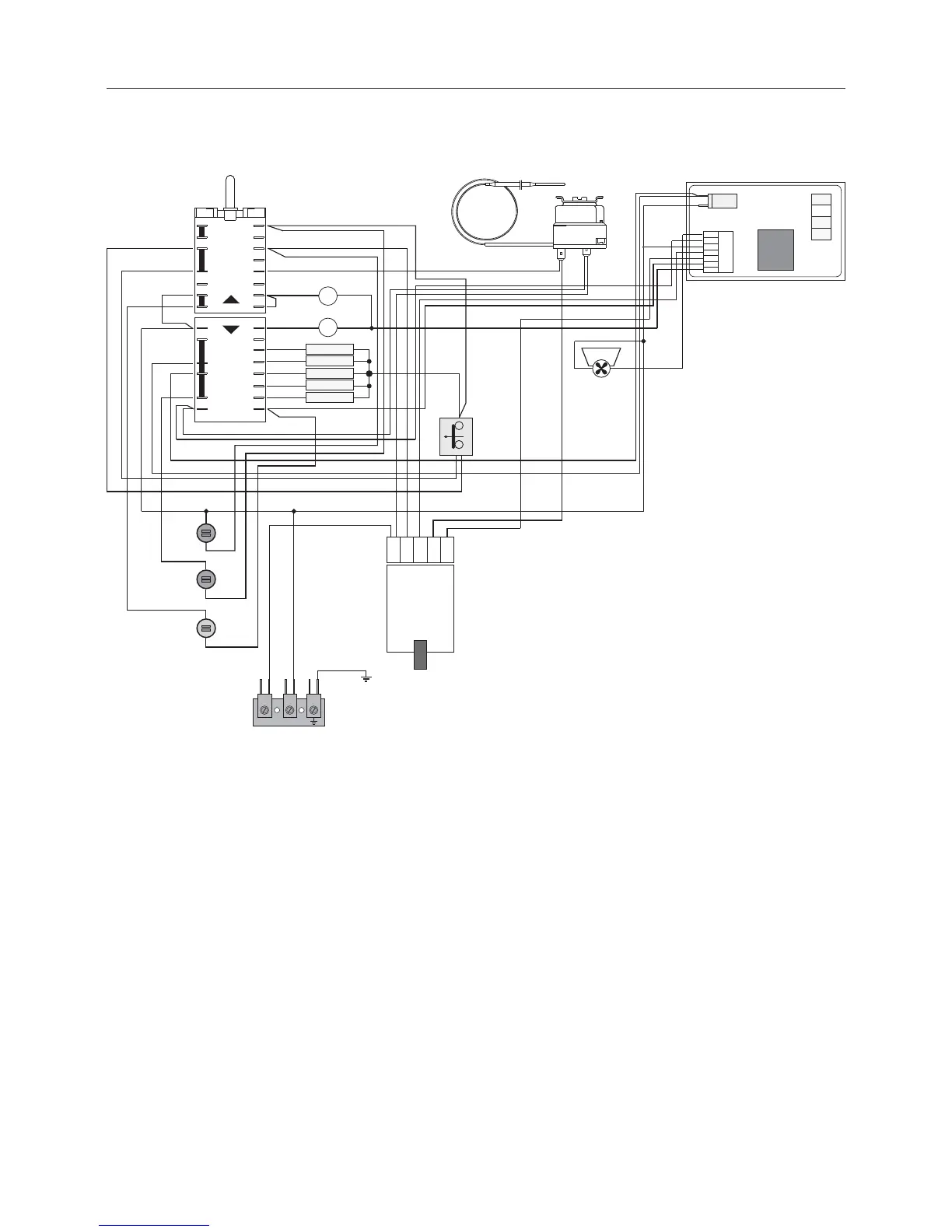

ELECTRIC DIAGRAM - multifunction OVENS
F1 Oven switch
TH Safety thermostat
ST1 Oven sensor switch
ST3 Oven door switch
ST4 Encoder switch
PR Programmer
TL Thermal overload
DL Door locking safety device
CF Cooling fan
LF Oven lamp
V Fan
ST Thermostat pilot lamp
SL Line pilot lamp
SD Door locking pilot lamp
7
CIR Circular element
G Grill element
C Top element
S INT. Bottom element 1
S EXT. Bottom element 2
M Terminal block
T Earth connection
