DeLonghi DE60PYROS - Repairs; Replacing the Power Supply Cable

REPAIRS
REPLACING THE POWER SUPPLY CABLE

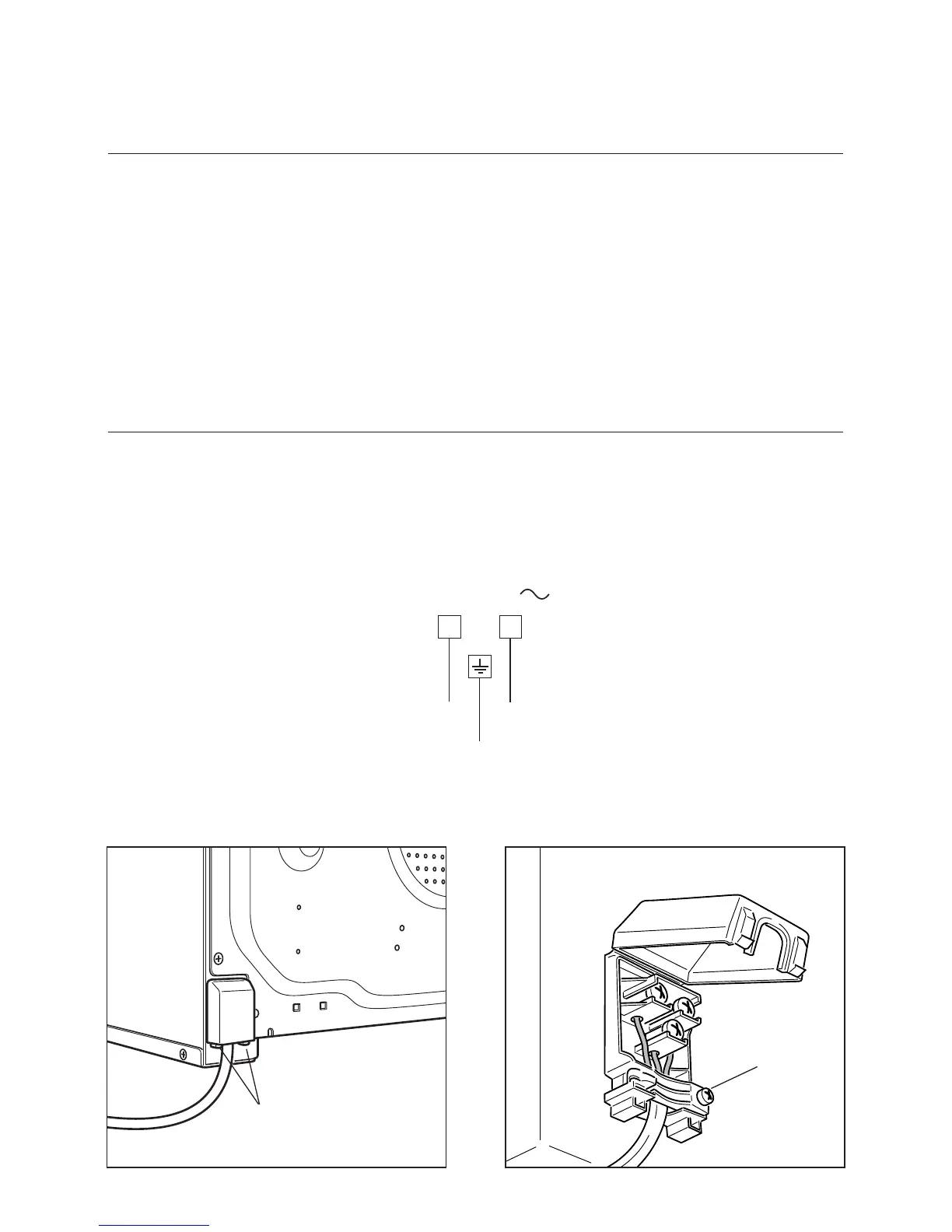

■ Unhook the terminal board cover by inserting a screwdriver into the two
hooks “A” (fig. 1.2).
■ Open the cable gland by unscrewing screw “F” (fig. 1.3), unscrew the
terminal screws and remove the cable.
■ The new supply cable, of suitable type and section, is connected to the
terminal board following the diagram fig. 1.1.
FEEDER CABLE SECTION TYPE HO5RR-F
Appliance power rating: 230 V~ 3095 W (13.4 A) 3 x 1.5 mm
2
240 V~ 3370 W (14.0 A) 3 x 1.5 mm
2
A
F
230-240 V
E
N
L
1 (L )2
6
Fig. 1.3Fig. 1.2
Fig. 1.1
