31
Replacement of the grill burner injector

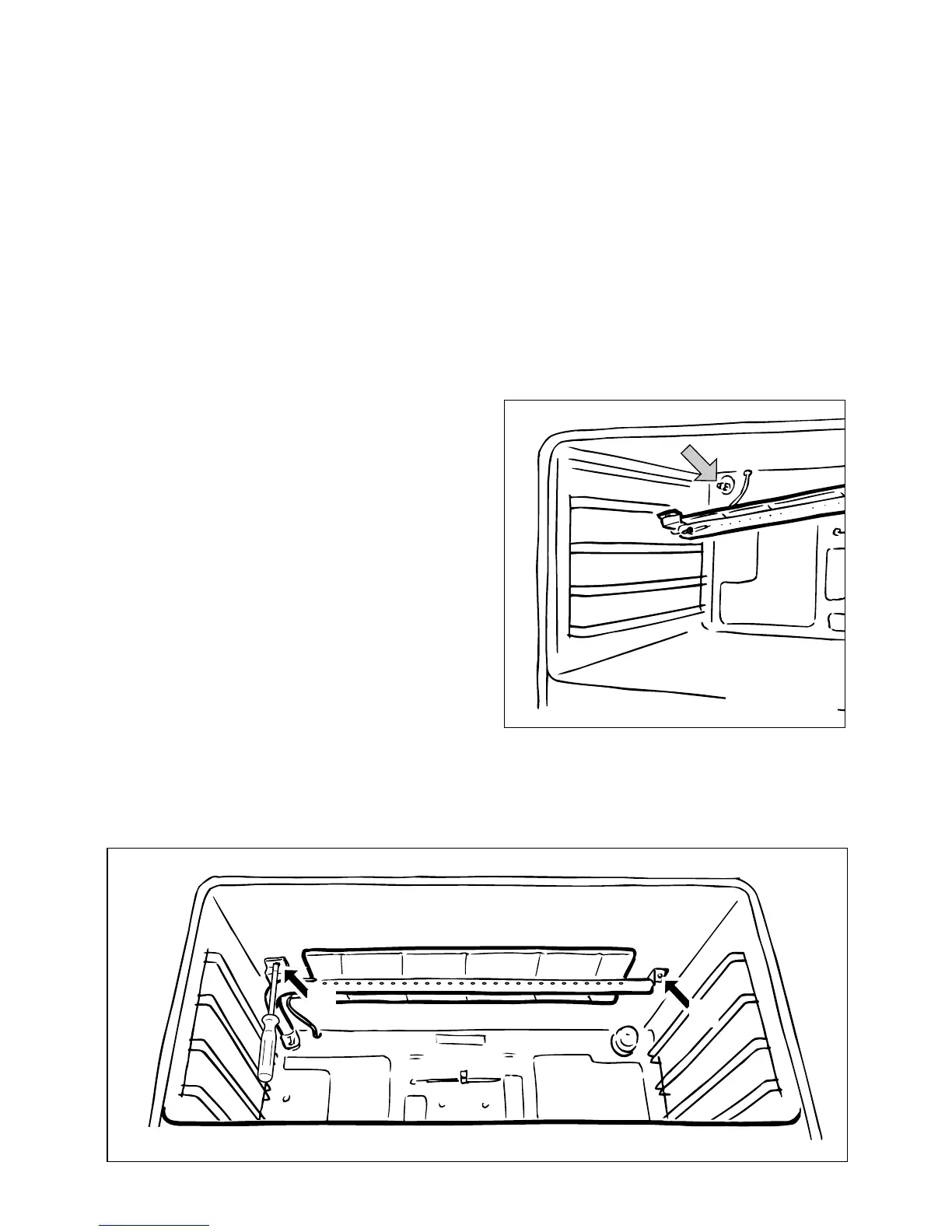

– Remove the grill burner by unscrewing the front screw (fig. 36).
– Gently suspend the burner as shown in figure 37. Take care not to damage the wire to the
ignition electrode and the safety valve probe.
– Remove the injector from the connection and replace it with the correct one (fig. 37).
Fig. 37
Fig. 36
C
D
