32
Primary air of the oven
burner

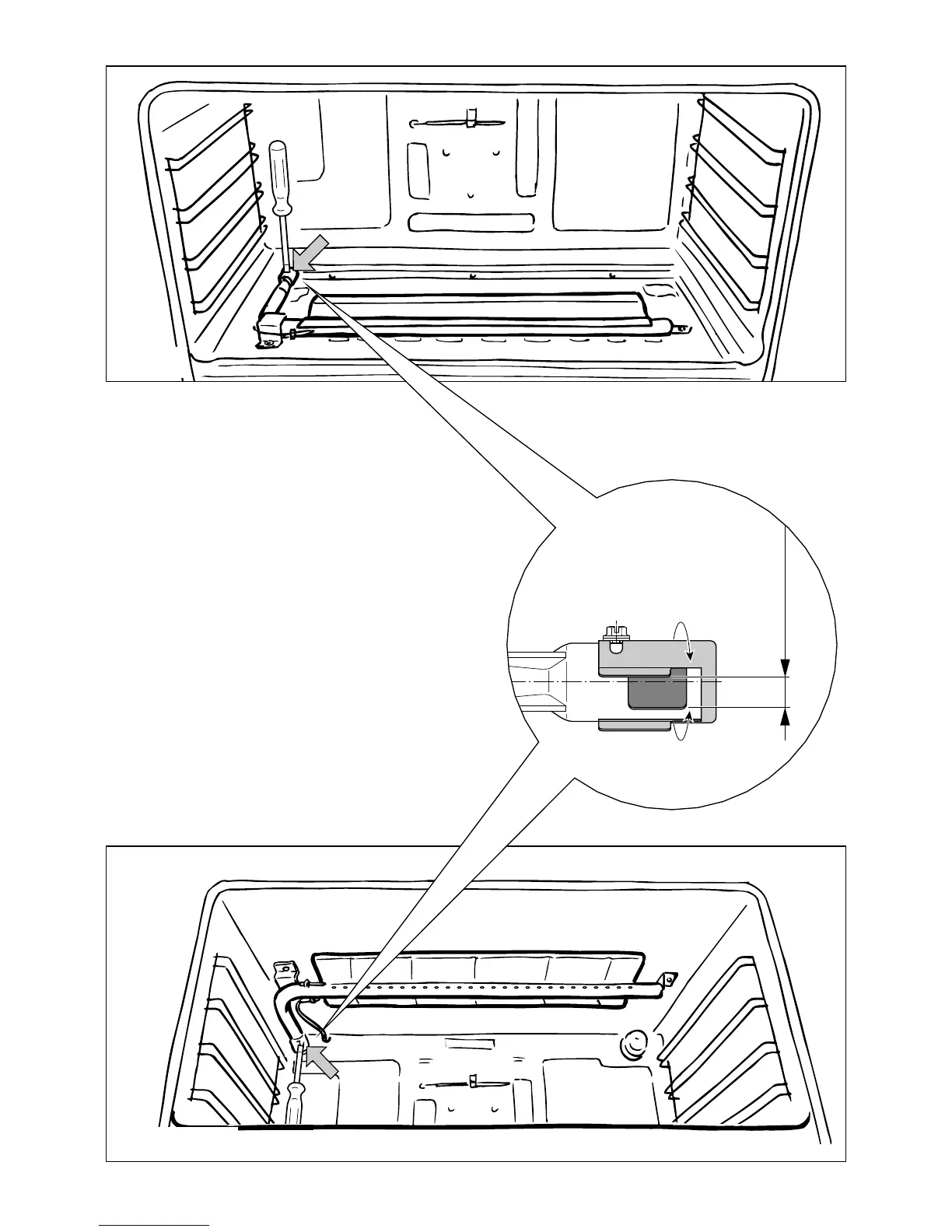

With a screwdriver untighten the screw (fig.
38) and move the air ring forward or back-
ward to close or open the air flow, according
to the “Table for the choice of the injectors”.
Light the burner and check the flames.
Primary air of the grill burner
With a screwdriver untighten the screw (fig.
39) and turn the air ring to close or open the
air flow, according to the “Table for the
choice of the injectors”.
Light the burner and check the flames.
Fig. 38
Fig. 39
Ring opening
